Product description

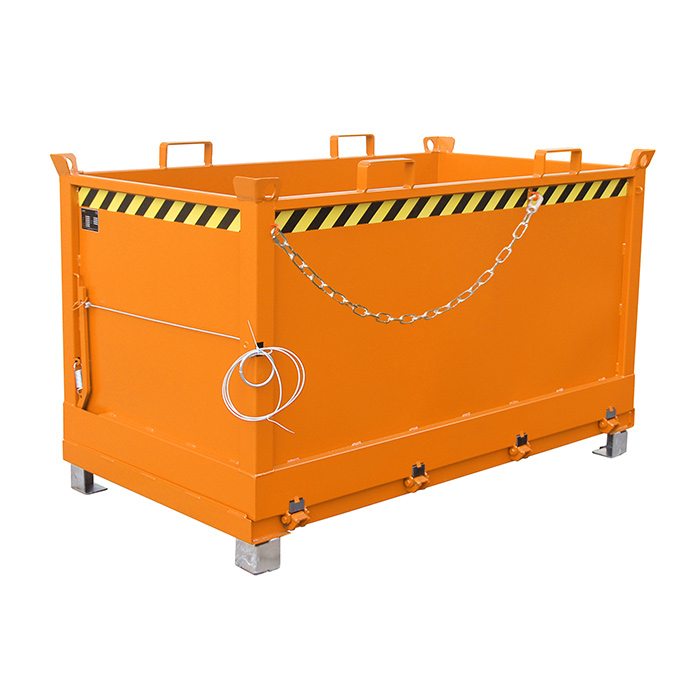

Flap bottom container for collecting, storing and discharging materials
• Robust steel design with smooth interior walls
• Bottom flap can be unlocked by cable pull from the forklift seat
• Rubber shock absorber dampens the sudden dropping of the flap during the emptying process
• Bottom flap closes automatically when the container is placed down
• Safety mechanism to prevent accidental slipping and the opening of the bottom flap

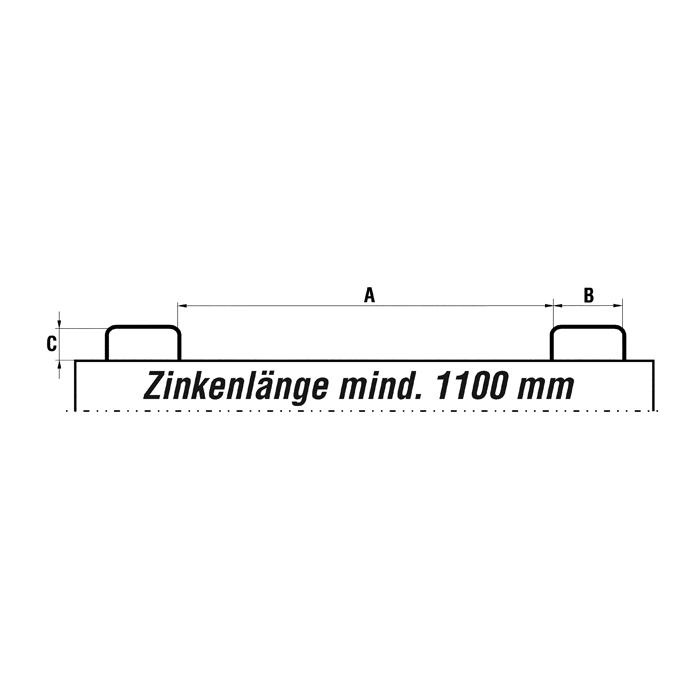

• Mounts for forklifts and cranes
• 100 mm ground clearance – transportable with pallet truck
• 4 crane eyelets with 40 mm diameter
• Up to 3 containers can be stacked
• Surface varnished orange RAL 2000, red RAL 3000, blue RAL 5021, green RAL 6011, grey RAL 7005
Accessories:
• Castor set comprising 2 steering and 2 fixed castors made from polyamide Ø 180 mm, including one steering castor with arrestor • construction height 220 mm, max. load capacity 1,350 kg
• Galvanized centering walls for bottom flap
