Coupler Shackle 630kg Dee shackle

£61.93
Final price is shown in the shopping cart.
Materialnumber
25301810015323

Free Return
no
Free Shipping
No, see Checkout
Shipping
Expected to arrive in 6-30 working days
Payment options:
E-MailWhatsapp
Working load limit630,00 kg
Max. operating temperature200,00 °C
Min. operating temperature-40,00 °C
Explosion protectionNo
Corrosion resistanceYes
MaterialSteel
SurfacePowder-coated
Approved for LiftingYes
Type of LockingScrew pin
GradeGrade 10
ShapeDee shackle
Bolt Diametre10,00 mm
StandardDIN EN 1677-1
Identification label availableNo
Product descriptionCoupler Shackle
ManufacturerRUD
BrandVIP
Type nameVMKS
Manufacturer part number7985243
eClass 6.236123411
eClass 4.023170704
eClass 4.123170704
eClass 523130102
eClass 7.136123411
UNSPSC V724101600
eClass 8.036123411
UNSPSC V13.524101641
Defined eStandard1
eClass 5.1.123130102
eClass 5.123130102
eClass 9.036123411
eClass 10.0.136123411
GTIN4008244218782
eClass 10.136123411
UNSPSC V20.060124101641
eClass 5.1.423130102
UNSPSC V13.5_S241016

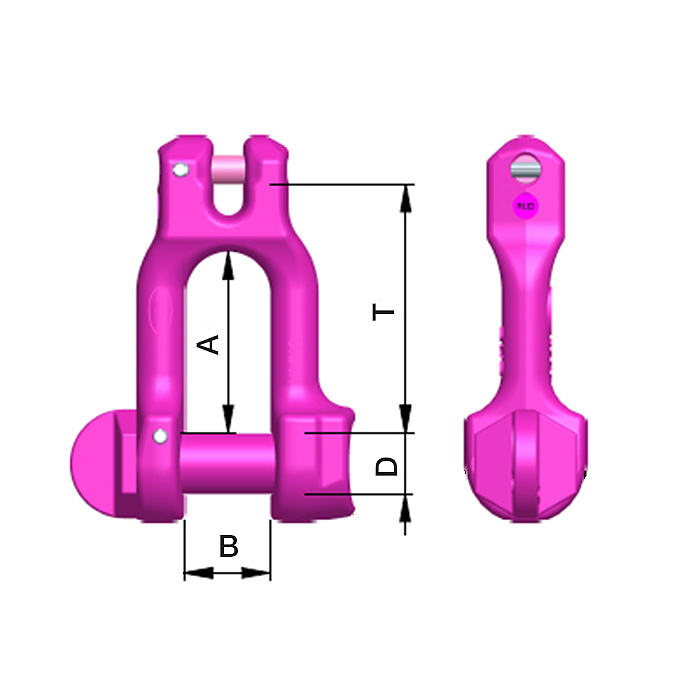

A30 mm
B14 mm
D10 mm
T42 mm
VIP-MINI-Kupplungsschäkel

Product description

• High-strength design with integrated safety thread in shackle bracket
• Smooth bolt support on both sides in shackle - Rotatable bolt
• No bending stress in the thread, only safety function
• Optimum balance - maximum jaw width with smallest shackle bolts
• Due to twisted fork head - cardan joint, largely insensitive to bending
• Long-term protection by knocking in the pre-assembled clamping sleeve
• Special thread, therefore no confusion with other shackle bolts
• Completely pre-assembled with connecting bolts and clamping sleeves
