Load-Ringe w. Chain connector 31.500kg VWBG-KA M72x108mm

£2,595.42
Final price is shown in the shopping cart.
Materialnumber
25250000015434

Free Return
no
Free Shipping
No, see Checkout
Shipping
Expected to arrive in 6-30 working days
Payment options:
E-MailWhatsapp
Working load limit31.500,00 kg
Max. operating temperature400,00 °C
Min. operating temperature-40,00 °C
Explosion protectionNo
MaterialSteel
Inner Width170,00 mm
Attachment typeScrewable
Perm. load capacity 90°31.500,00 kg
Rotates under loadYes
Turning range360,00 Degree
Bearing typeBall bearing
Swivel range suspension link270,00 Degree
Colourpink
Surface treatmentPowder-coated
Thread SizeM72
Product descriptionLoad-Ringe w. Chain connector
BrandVIP
Type designationVWBG-KA
Torque for perm. attachment1.200,00 Nm
Bolt availableYes
Usable bolt length108,00 mm
eClass 6.236123412
eClass 4.023170704
eClass 4.123170704
eClass 523179104
eClass 7.136123412
UNSPSC V731151505
eClass 8.036123412
UNSPSC V13.531151505
Defined eStandard1
eClass 5.1.123179104
eClass 5.123179104
eClass 9.021043890
eClass 10.0.121043890
eClass 10.136123421
UNSPSC V20.060131151505

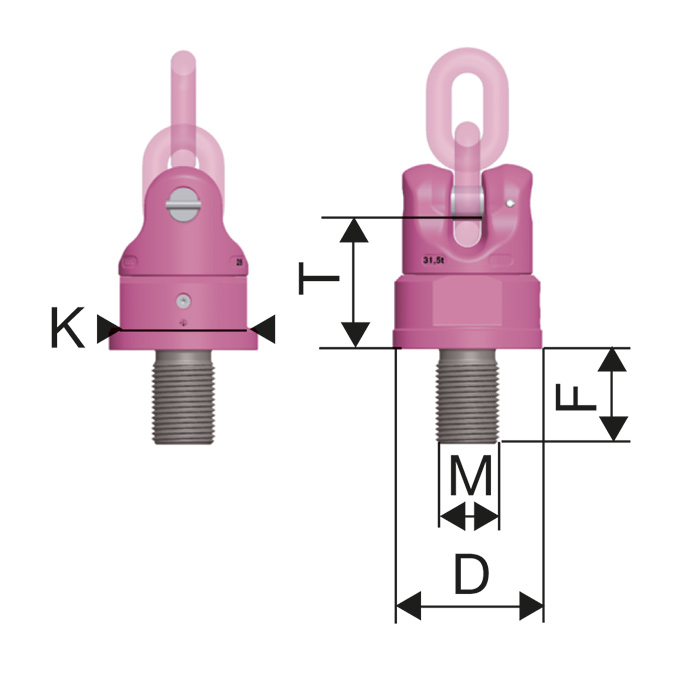

D170 mm
F108 mm
T146 mm
VIP-Wirbelbock-Gewinde VWBG-KA-28
VIP-Wirbelbock-Gewinde VWBG-KA-28

Product description

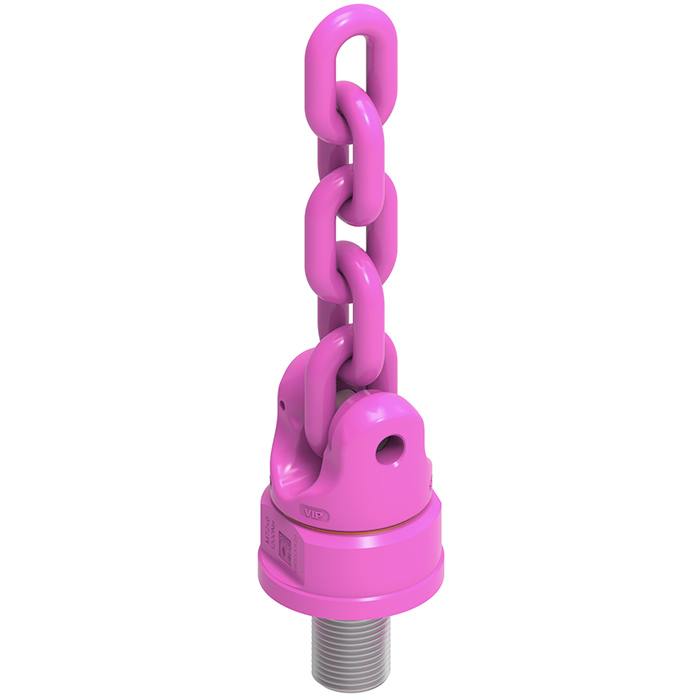

The VIP PowerPoint for Direct Chain Connection is a robust and reliable lifting point designed specifically for secure attachment of lifting chains. Engineered from premium-grade materials, this PowerPoint ensures high strength and durability, making it ideal for demanding lifting and rigging applications in industrial, construction, and manufacturing environments. Designed to facilitate direct chain connection, this lifting point eliminates the need for additional connectors, simplifying the lifting setup and improving efficiency. Its compact and sturdy construction supports heavy loads while providing flexibility for various lifting angles and positions. The VIP PowerPoint for Direct Chain Connection complies with strict safety standards and offers excellent corrosion resistance, making it suitable for use in harsh conditions. This dependable lifting solution enhances safety, reliability, and ease of use when handling heavy loads with chain slings or hoists. • Suitable for all slings, be it hooks, eyes or loops • Can be turned and loaded in 90° angle to the bolt centre line • Sufficient distance to load to avoid damage during turning • Can be used up to -40°C (-40°F) • Double ball bearing for smooth tilting, rotating and turning • All parts 100% crack tested • Variable screw length – including for through bores – (F-vario) • Tightening torque according to instructions • Not suitable for continual rotation under full load • 360° rotatable, 230° tiltable
