| Working load limit | 2.500,00 kg |
| Max. operating temperature | 400,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Attachment type | Weldable |
| Welding seam | Fillet weld 5 |
| Perm. load capacity 90° | 2.500,00 kg |
| Rotates under load | No |
| Colour | pink |
| Surface treatment | Powder-coated |
| Standard | DIN EN 1677-1 |
| Product description | Mounting hook |
| Brand | VIP |
| Type designation | VABH-W |
| eClass 6.2 | 36123490 |
| eClass 4.0 | 23170704 |
| eClass 4.1 | 23170704 |
| eClass 5 | 23179104 |
| eClass 7.1 | 36123490 |
| UNSPSC V7 | 24101600 |
| eClass 8.0 | 36123420 |
| UNSPSC V13.5 | 24101600 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23120201 |
| eClass 5.1 | 23120201 |
| eClass 9.0 | 36123420 |
| eClass 10.0.1 | 36123420 |
| eClass 10.1 | 36123420 |
| UNSPSC V20.0601 | 24101600 |
| eClass 5.1.4 | 23120201 |
| UNSPSC V13.5_S | 241016 |

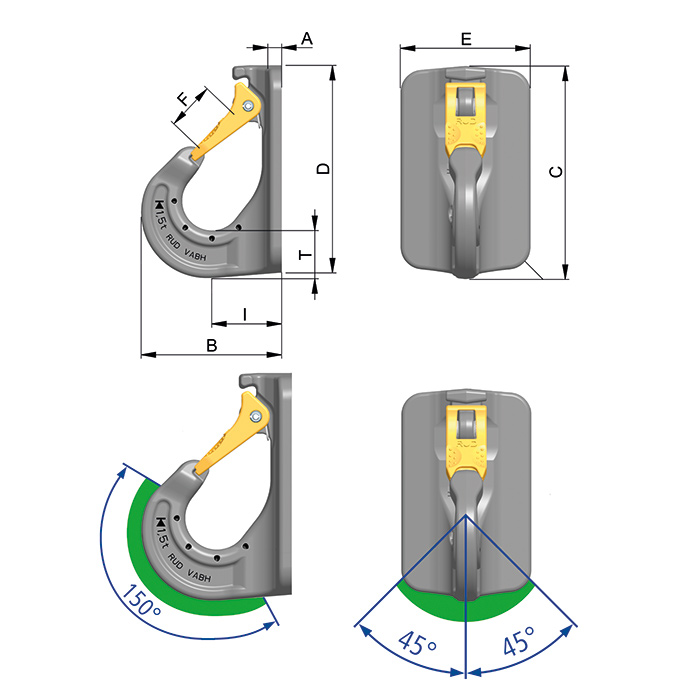

| A | 8.5 mm |
| B | 98 mm |
| C | 148 mm |
| D | 143 mm |
| E | 85 mm |
| F | 31.5 mm |
| I | 49 mm |
| T | 33 mm |
Weld-on hook as lifting point on spreader beams. Suitable for wire
rope slings, round slings and slings with loop or Master link.
• If possible mount in the direction of pull
• Solid safety latch
• No protruding hook tip – no unintentional hooking
• Thickened hook tip to prevent improper use
• Patented wear indicators on the hook
• Measurable overload indicator
• Surface phosphated
• Can also be used as excavator hook
