| Working load limit | 880,00 kg |
| Max. operating temperature | 380,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Inner Width | 30,00 mm |
| Inner Height | 66,00 mm |
| Grade | Grade 10 |
| Number of Legs | 2 |
| WLL under angle 0° - 45° | 880,00 kg |
| WLL under angle 45°- 60° | 630,00 kg |
| Nominal strength | 1.000,00 N/mm2 |
| Material thickness | 10,00 mm |
| Single link type | Suspension set |
| Mounting block | Shortening element |
| Colour | black |
| Nominal size | 4,0 |
| Suitable for Hook Size | Nr. 012 |
| Surface treatment | Powder-coated |
| Standard | DIN EN 1677-4 |
| Product description | Suspension fitting |
| Brand | VIP |
| Type designation | VML |
| Manufacturer part number | 7984478 |
| eClass 6.2 | 23179104 |
| eClass 4.0 | 23170704 |
| eClass 4.1 | 23170704 |
| eClass 5 | 23179104 |
| eClass 7.1 | 23179104 |
| UNSPSC V7 | 24101600 |
| eClass 8.0 | 23179104 |
| UNSPSC V13.5 | 24101600 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23179104 |
| eClass 5.1 | 23179104 |
| eClass 9.0 | 23179104 |
| eClass 10.0.1 | 23179104 |
| GTIN | 4008244302863 |
| eClass 10.1 | 23179104 |
| UNSPSC V20.0601 | 24101600 |
| eClass 5.1.4 | 23179104 |
| UNSPSC V13.5_S | 241016 |

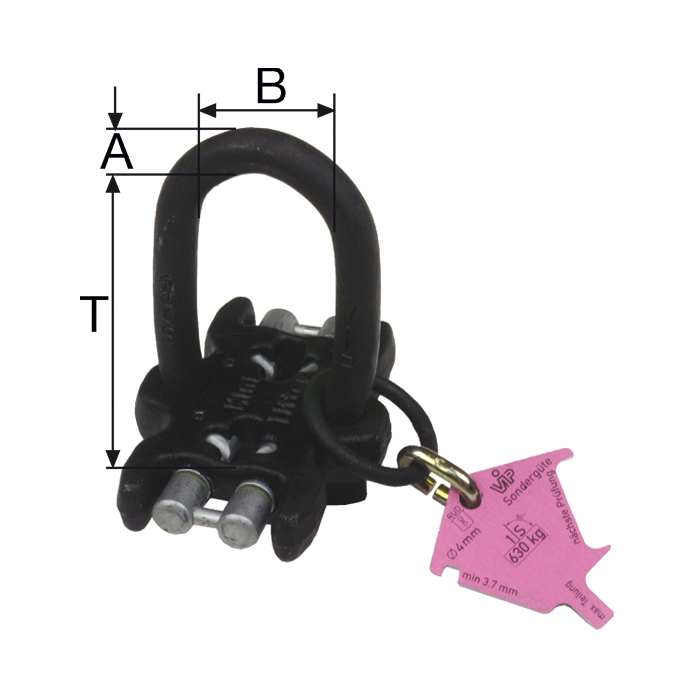

| A | 10 mm |
| B | 30 mm |
| T | 66 mm |
VIP-Minilifter suspension head with integrated shortening option, especially for 4 mm VIP sling chain. The chain cross is unlocked by pressing the locking pins. The chain can then be threaded in or adjusted in length. Ideal for small loads up to 880 kg (for 2 strand applications).
