Product description
- VIP end link type VB
- Permissible payload 31.500,00 kg
| Working load limit | 31.500,00 kg |
| Max. operating temperature | 380,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Grade | Grade 10 |
| Nominal strength | 1.000,00 N/mm2 |
| Single link type | End link |
| Colour | pink |
| Nominal size | 28,0 |
| Surface treatment | Powder-coated |
| Standard | DIN EN 1677-4 |
| Product description | End link |
| Brand | VIP |
| Type designation | VB |
| Manufacturer part number | 7900641 |
| eClass 6.2 | 23179104 |
| eClass 5 | 23170601 |
| eClass 7.1 | 23179104 |
| UNSPSC V7 | 24101600 |
| eClass 8.0 | 23179104 |
| UNSPSC V13.5 | 24101600 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23179104 |
| eClass 5.1 | 23179104 |
| eClass 9.0 | 23179104 |
| eClass 10.0.1 | 23179104 |
| GTIN | 4008244279608 |
| eClass 10.1 | 23179104 |
| UNSPSC V20.0601 | 24101600 |
| eClass 5.1.4 | 23179104 |
| UNSPSC V13.5_S | 241016 |

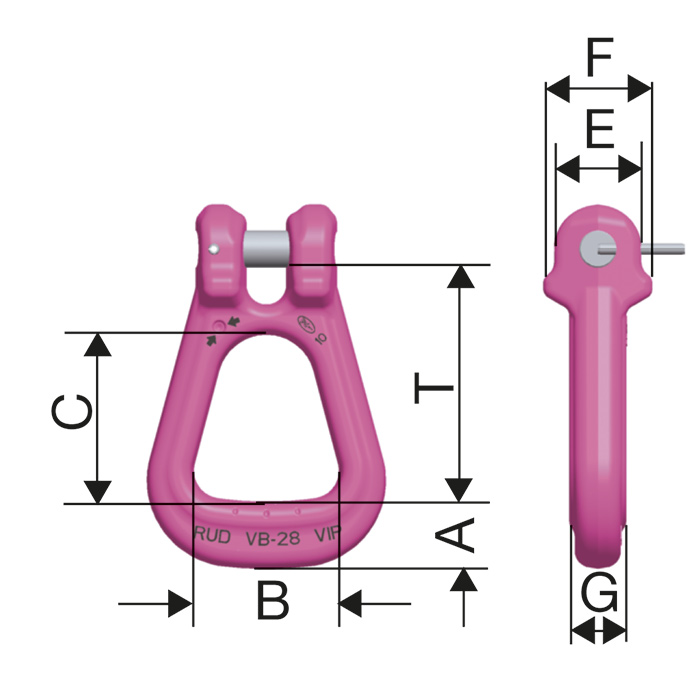

| A | 62 mm |
| B | 130 mm |
| C | 150 mm |
| E | 80 mm |
| F | 100 mm |
| G | 52 mm |
| T | 209 mm |
- VIP end link type VB
- Permissible payload 31.500,00 kg
