| Working load limit | 1.320,00 kg |
| Max. operating temperature | 380,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Inner Width | 35,00 mm |
| Inner Height | 60,00 mm |
| Grade | Grade 10 |
| Number of Legs | 4 |
| WLL under angle 0° - 45° | 1.320,00 kg |
| WLL under angle 45°- 60° | 950,00 kg |
| Nominal strength | 1.000,00 N/mm2 |
| Material thickness | 10,00 mm |
| Single link type | Suspension set |
| Colour | pink |
| Surface treatment | Powder-coated |
| Standard | DIN EN 1677-4 |
| Product description | Suspension fitting |
| Brand | VIP |
| Type designation | VAK |
| Manufacturer part number | 7984447 |
| eClass 6.2 | 23179104 |
| eClass 4.0 | 23170704 |
| eClass 4.1 | 23170704 |
| eClass 5 | 23179104 |
| eClass 7.1 | 23179104 |
| UNSPSC V7 | 24101600 |
| eClass 8.0 | 23179104 |
| UNSPSC V13.5 | 24101600 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23179104 |
| eClass 5.1 | 23179104 |
| eClass 9.0 | 23179104 |
| eClass 10.0.1 | 23179104 |
| GTIN | 4008244219109 |
| eClass 10.1 | 23179104 |
| UNSPSC V20.0601 | 24101600 |
| eClass 5.1.4 | 23179104 |
| UNSPSC V13.5_S | 241016 |

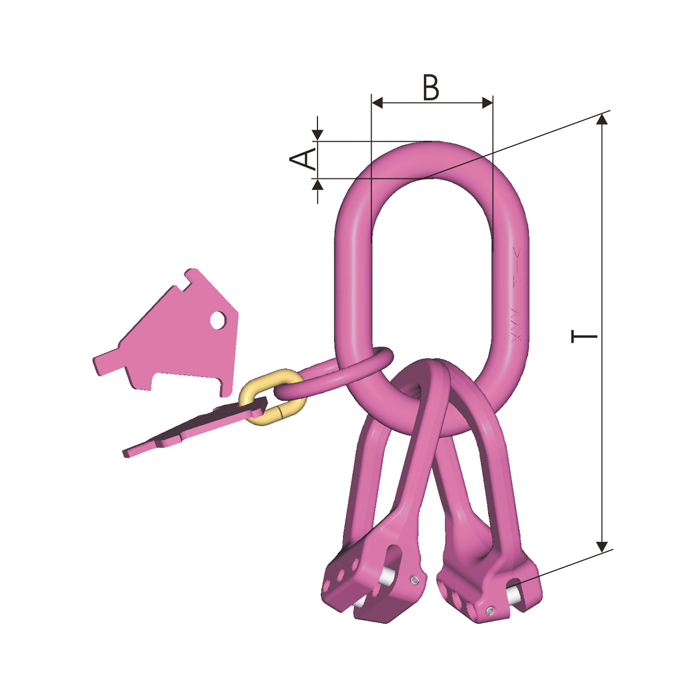

| A | 10 mm |
| B | 35 mm |
| T | 115 mm |

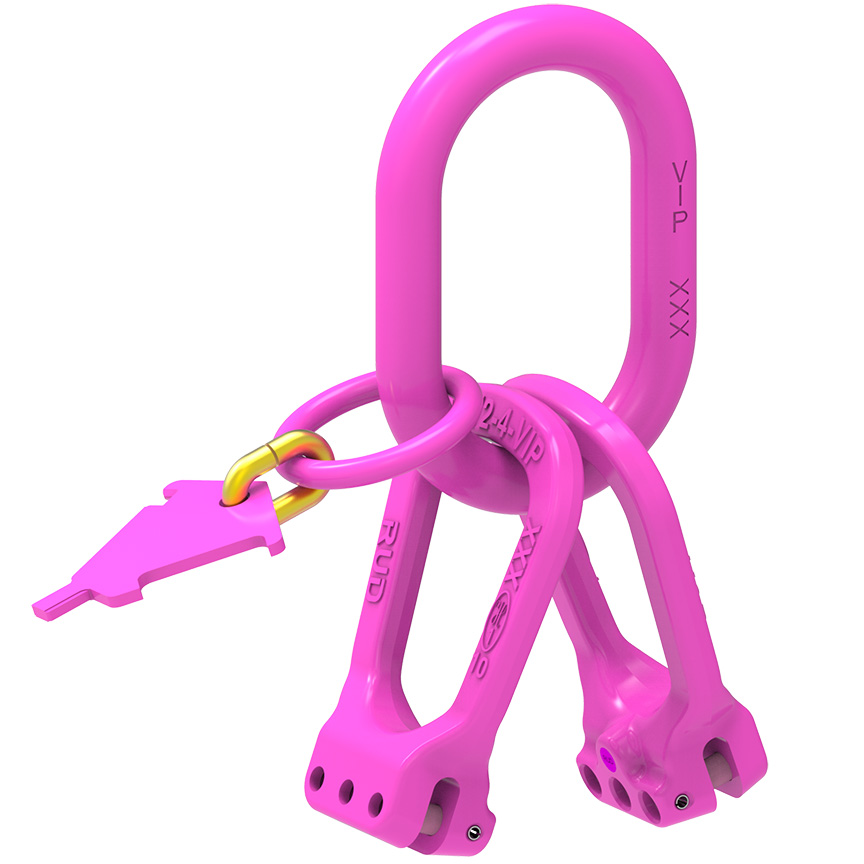

Master link with preassembled clevis ring type VRG, allowing only the correct chain Ø and number of legs to be connected. Includes identification tag with integrated chain gauge. Connecting bolts and securing sleeve are preassembled.
