Master link with preassembled clevis ring type VRG, allowing only the correct chain Ø and number of legs to be connected. Includes identification tag with integrated chain gauge. Connecting bolts and securing sleeve are preassembled.
Master link with preassembled clevis ring type VRG, allowing only the correct chain Ø and number of legs to be connected. Includes identification tag with integrated chain gauge. Connecting bolts and securing sleeve are preassembled.
| Working load limit | 630,00 kg |
| Max. operating temperature | 380,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Inner Width | 28,00 mm |
| Inner Height | 47,00 mm |
| Grade | Grade 10 |
| Number of Legs | 2 |
| WLL under angle 0° - 45° | 880,00 kg |
| WLL under angle 45°- 60° | 630,00 kg |
| Nominal strength | 1.000,00 N/mm2 |
| Material thickness | 8 mm |
| Single link type | Suspension link |
| Colour | pink |
| Suitable for Hook Size | Nr. 025 |
| Surface treatment | Powder-coated |
| Standard | DIN EN 1677-4 |
| Product description | Suspension link |
| Brand | VIP |
| Type designation | VAK |
| Manufacturer part number | 7984445 |

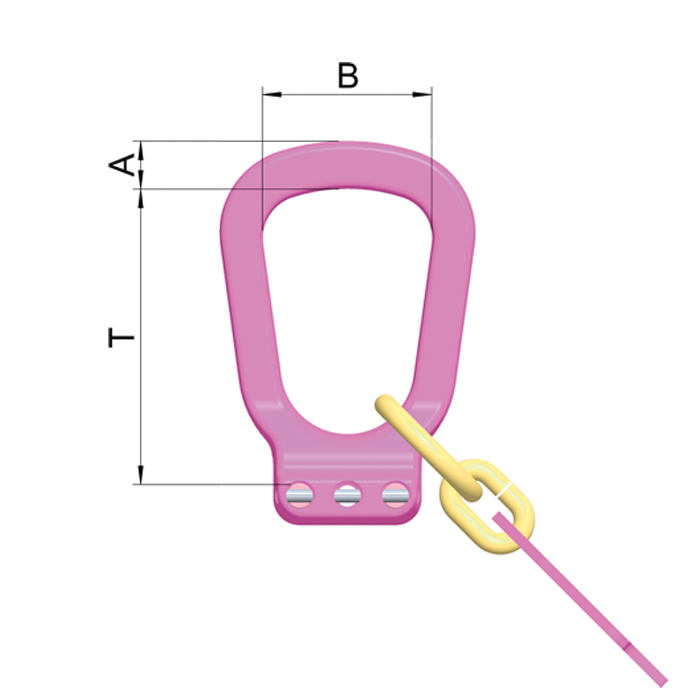

| A | 8 mm |
| B | 28 mm |
| T | 55 mm |
| eClass 6.2 | 23179104 |
| eClass 4.0 | 23170704 |
| eClass 4.1 | 23170704 |
| eClass 5 | 23179104 |
| eClass 7.1 | 23179104 |
| UNSPSC V7 | 31151609 |
| eClass 8.0 | 23179104 |
| UNSPSC V13.5 | 31151609 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23179104 |
| eClass 5.1 | 23179104 |
| eClass 9.0 | 23179104 |
| eClass 10.0.1 | 23179104 |
| GTIN | 4008244219093 |
| eClass 10.1 | 23179104 |
| UNSPSC V20.0601 | 31151609 |
| eClass 5.1.4 | 23179104 |
| UNSPSC V13.5_S | 3115 |
