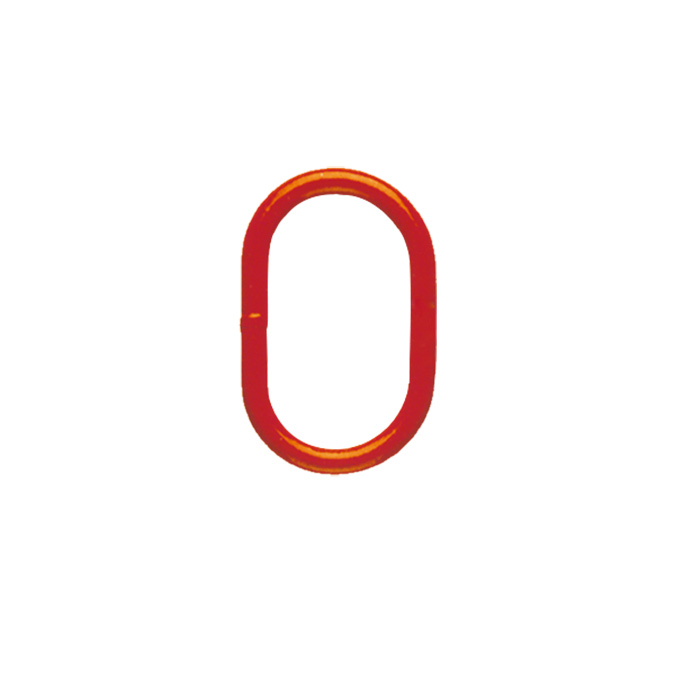

Product description
• Grade 80, no flattened section
• surface: red dipped
• For 1- and 2-leg wire rope slings according to DIN EN 13414-1
• For 1- and 2-leg chain slings according to EN 818
| Working load limit | 14.000,00 kg |
| Max. operating temperature | 400,00 °C |
| Min. operating temperature | -80,00 °C |
| Explosion protection | No |
| Material | Steel |
| Inner Width | 140,00 mm |
| Inner Height | 260,00 mm |
| Grade | Grade 8 |
| Number of Legs | 2 |
| WLL under angle 0° - 45° | 14.000,00 kg |
| WLL under angle 45°- 60° | 11.200,00 kg |
| Nominal strength | 800,00 N/mm2 |
| Material thickness | 36,00 mm |
| Single link type | Suspension link |
| Colour | red |
| RAL colour no. | RAL 3000 Flame Red |
| Nominal size | 18,0 |
| Surface treatment | Lacquered |
| Standard | DIN EN 1677-4 |
| Product description | Suspension link |
| Brand | Cartec80 |
| Type designation | CM |
| Manufacturer part number | CM2018H |
| eClass 6.2 | 23179104 |
| eClass 4.0 | 23170704 |
| eClass 4.1 | 23170704 |
| eClass 5 | 23179104 |
| eClass 7.1 | 23179104 |
| UNSPSC V7 | 31151609 |
| eClass 8.0 | 23179104 |
| UNSPSC V13.5 | 31151609 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23179104 |
| eClass 5.1 | 23179104 |
| eClass 9.0 | 23179104 |
| eClass 10.0.1 | 23179104 |
| GTIN | 8013429882074 |
| eClass 10.1 | 23179104 |
| UNSPSC V20.0601 | 31151609 |
| eClass 5.1.4 | 23179104 |
| UNSPSC V13.5_S | 3115 |
| D | 36 mm |
| L | 140 mm |
| P | 260 mm |
• Grade 80, no flattened section
• surface: red dipped
• For 1- and 2-leg wire rope slings according to DIN EN 13414-1
• For 1- and 2-leg chain slings according to EN 818
