| Working load limit | 6.800,00 kg |
| Explosion protection | No |
| Material | Steel |
| Grade | Grade 10 |
| Hook version | Load hook with safety latch |
| Safety latch version | Forged |
| Hook connection | Clevis |
| Clevis nominal size | 13,00 mm |
| Hook nominal size | 13,00 |
| Hook opening | 55,00 mm |
| Colour | yellow |
| Surface treatment | Lacquered |
| Standard | DIN EN 1677-2 |

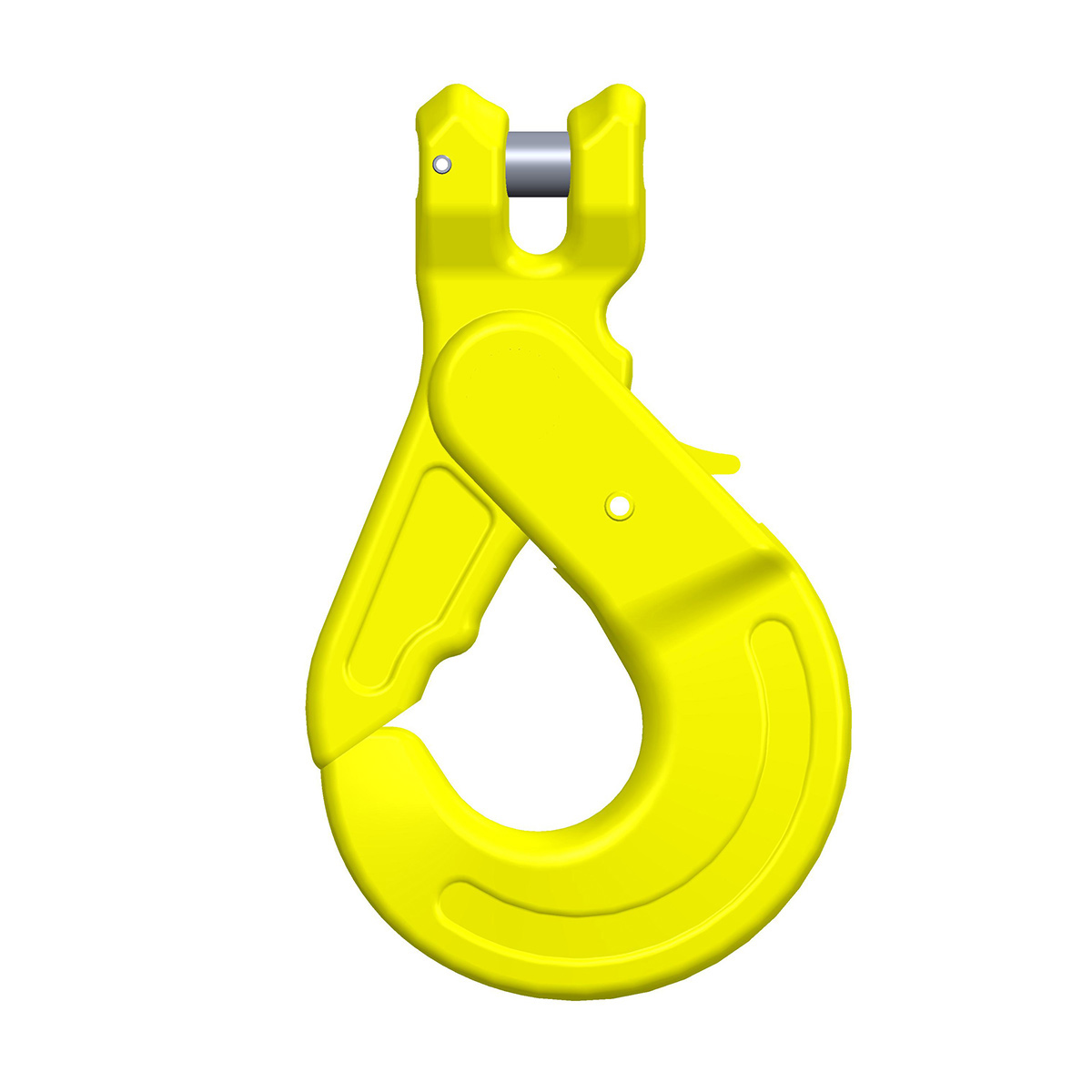

| Product description | Self-locking Clevis Hook |
| Brand | GrabiQ |
| Type designation | BKGC |
| Manufacturer part number | Z1002401 |
| eClass 6.2 | 36123414 |
| eClass 4.0 | 23170704 |
| eClass 4.1 | 23170704 |
| eClass 5 | 23179104 |
| eClass 7.1 | 36123414 |
| UNSPSC V7 | 31162600 |
| eClass 8.0 | 36123414 |
| UNSPSC V13.5 | 31162600 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23179104 |
| eClass 5.1 | 23179104 |
| eClass 9.0 | 36123414 |
| eClass 10.0.1 | 36123414 |
| eClass 10.1 | 36123414 |
| UNSPSC V20.0601 | 31162600 |
| eClass 5.1.4 | 23179104 |
| UNSPSC V13.5_S | 3116 |

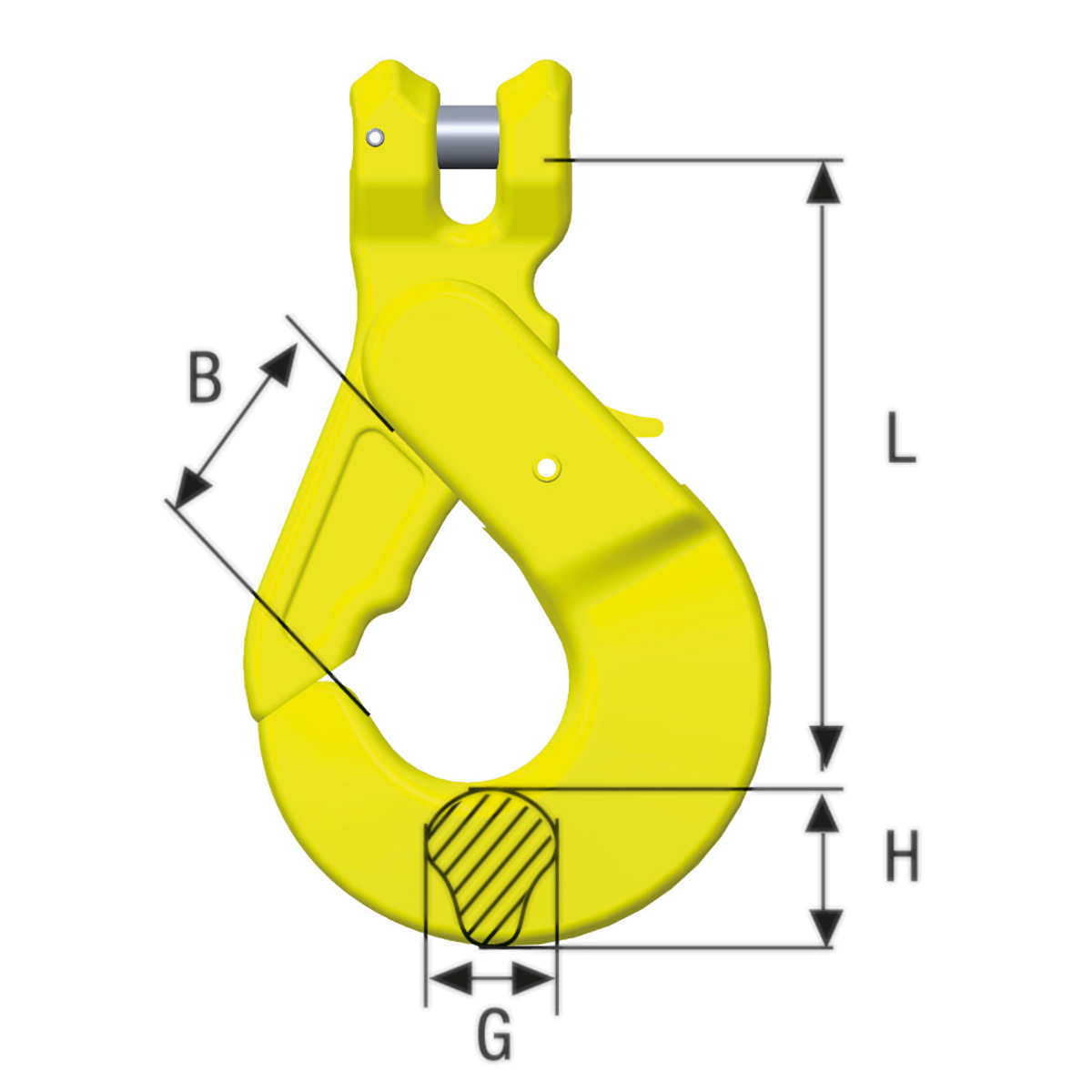

| B | 55 mm |
| G | 27 mm |
| H | 43 mm |
| L | 164 mm |
• Designed as self-locking automatic hook
• When loaded, the hook closes automatically and remains forcibly locked during the entire lifting process
• Unintentional removal from the trough is impossible
• Suitable for all standard containers
