| Working load limit | 31.500,00 kg |
| Max. operating temperature | 400,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Grade | Grade 8 |
| Nominal strength | 800,00 N/mm2 |
| Hook version | Load hook without safety latch |
| Hook connection | Eyelet |
| Eyelet diameter | 70,00 mm |
| Hook nominal size | 32,00 |
| Hook opening | 153,00 mm |
| Colour | red |
| RAL colour no. | RAL 3000 Flame Red |
| Surface treatment | Lacquered |
| Product description | Foundry Hook |
| Brand | Cartec80 |
| Type designation | CY |
| Manufacturer part number | CY32 |
| eClass 6.2 | 36123414 |
| eClass 5 | 23120201 |
| eClass 7.1 | 36123414 |
| UNSPSC V7 | 31162600 |
| eClass 8.0 | 36123414 |
| UNSPSC V13.5 | 31162600 |
| eClass 5.1.1 | 23120201 |
| eClass 5.1 | 23120201 |
| eClass 9.0 | 36123414 |
| eClass 10.0.1 | 36123414 |
| GTIN | 801342981609 |
| eClass 10.1 | 36123414 |
| UNSPSC V20.0601 | 31162600 |
| eClass 5.1.4 | 23120201 |
| UNSPSC V13.5_S | 3116 |

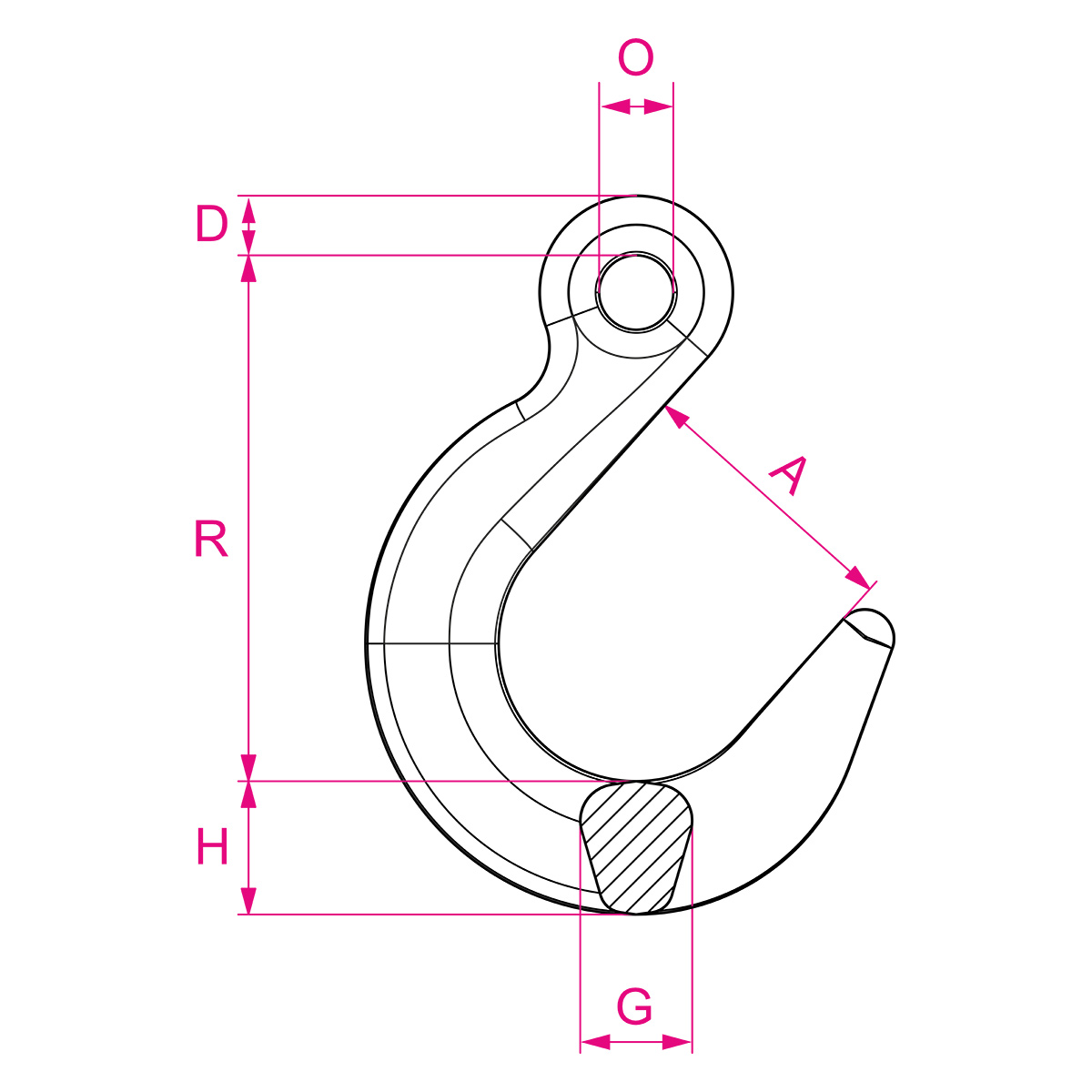

| A | 153 mm |
| D | 38 mm |
| G | 84 mm |
| H | 95 mm |
| O | 70 mm |
| R | 330 mm |
• With clevis connection
• Without safety latch
• Finish: painted red
• Also called container hook. With considerable bigger opening but without safety latch.
• Use only where accidental unhooking is not possible!
• Not for overhead lifting! Not suitable for the transportation of people.
• Does not comply with the EEC Machinery Directive 89/392 EWG I/4.4.1.
