| Working load limit | 12.500,00 kg |
| Max. operating temperature | 300,00 °C |
| Min. operating temperature | -60,00 °C |
| Explosion protection | No |
| Material | Steel |
| Grade | Grade 12 |
| Nominal strength | 1.200,00 N/mm2 |
| Hook version | Load hook without safety latch |
| Hook connection | Clevis |
| Clevis nominal size | 16,00 mm |
| Hook nominal size | 16,00 |
| Hook opening | 114,00 mm |
| RAL colour no. | RAL 4006 Traffic Purple |
| Surface treatment | Powder-coated |
| Product description | Foundry Hook |
| Brand | ICE |
| Type designation | IWH |
| Manufacturer part number | 7904363 |
| eClass 6.2 | 36123414 |
| eClass 4.0 | 23170704 |
| eClass 4.1 | 23170704 |
| eClass 5 | 36129090 |
| eClass 7.1 | 36123414 |
| UNSPSC V7 | 31162600 |
| eClass 8.0 | 36123414 |
| UNSPSC V13.5 | 31162600 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23120201 |
| eClass 5.1 | 23120201 |
| eClass 9.0 | 36123414 |
| eClass 10.0.1 | 36123414 |
| eClass 10.1 | 36123414 |
| UNSPSC V20.0601 | 31162600 |
| eClass 5.1.4 | 23120201 |
| UNSPSC V13.5_S | 3116 |

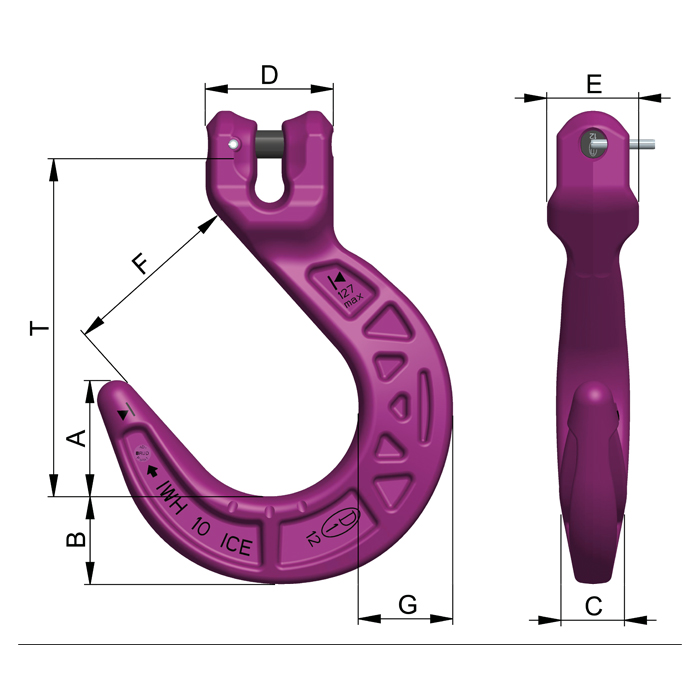

| A | 75 mm |
| B | 56 mm |
| C | 43 mm |
| D | 90 mm |
| E | 58 mm |
| F | 114 mm |
| G | 61 mm |
| T | 208 mm |
• Weight optimised in Sceletto technology
• With unmistakable fork head connector
• Robust cross-section (dimensions C and G) protects against higher bending forces
• Protection and wear edges (dimension E)
• Patented wear marks in the base of the hook
• Only use in areas where accidental detachment is not possible (risk assessment)!
