Product description
• CH-3 for vertical lifting only
• CH-3 left and right only use in pairs
• Observe angle of inclination
• Both versions do not allow automatic release
| Working load limit | 12.500,00 kg |
| Max. operating temperature | 400,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Grade | Grade 10 |
| Nominal strength | 1.000,00 N/mm2 |
| Hook version | Load hook without safety latch |
| Hook connection | Eyelet |
| Eyelet diameter | 70,00 mm |
| Colour | yellow |
| Surface treatment | Lacquered |
| Product description | Container Hook |
| Brand | GrabiQ |
| Type designation | CH-3 |
| Manufacturer part number | Z101220 |
| eClass 6.2 | 36123414 |
| eClass 4.0 | 36122204 |
| eClass 4.1 | 36122204 |
| eClass 5 | 36129090 |
| eClass 7.1 | 36123414 |
| UNSPSC V7 | 31162600 |
| eClass 8.0 | 36123414 |
| UNSPSC V13.5 | 31162600 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 36129090 |
| eClass 5.1 | 36129090 |
| eClass 9.0 | 36123414 |
| eClass 10.0.1 | 36123414 |
| GTIN | 7318953578037 |
| eClass 10.1 | 36123414 |
| UNSPSC V20.0601 | 31162600 |
| eClass 5.1.4 | 36129090 |
| UNSPSC V13.5_S | 3116 |

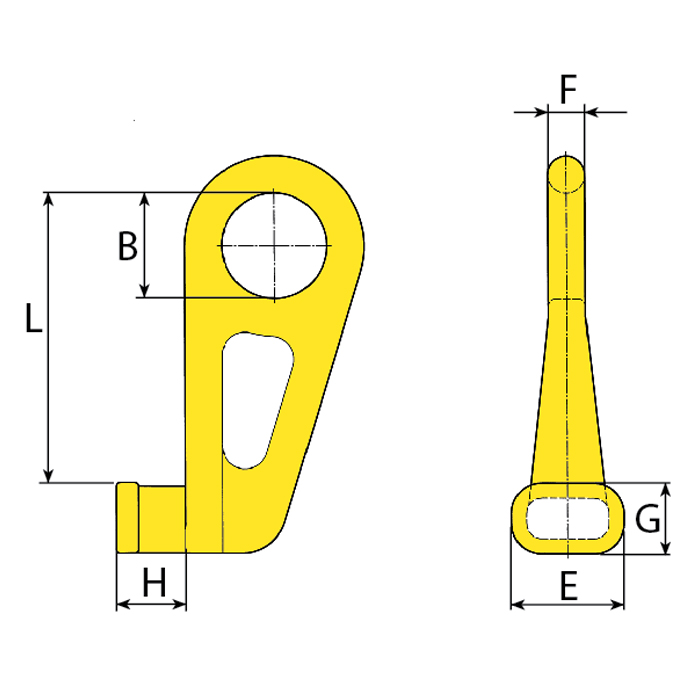

| B | 70 mm |
| E | 75 mm |
| F | 25 mm |
| G | 47 mm |
| H | 46 mm |
| L | 187 mm |
• CH-3 for vertical lifting only
• CH-3 left and right only use in pairs
• Observe angle of inclination
• Both versions do not allow automatic release
