Product description
• Quality class 8, DIN EN 1677-2
• Galvanised safety flap
• Design: green lacquered
| Working load limit | 6.300,00 kg |
| Max. operating temperature | 400,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Grade | Grade 8 |
| Nominal strength | 800,00 N/mm2 |
| Hook version | Load hook with safety latch |
| Safety latch version | Forged |
| Hook connection | Eyelet |
| Eyelet diameter | 52,00 mm |
| Hook nominal size | 14,00 |
| Hook opening | 50,00 mm |
| Colour | green |
| Surface treatment | Lacquered |
| Standard | DIN EN 1677-2 |
| Product description | Eye Hook |
| Manufacturer | Hubert Waltermann |
| Brand | SIKA |
| Short text product descr. | Eye Hook |
| Type designation | SIKA |
| Manufacturer part number | 132830063 |
| eClass 6.2 | 36123414 |
| eClass 4.0 | 36122204 |
| eClass 4.1 | 36122204 |
| eClass 5 | 36129090 |
| eClass 7.1 | 36123414 |
| UNSPSC V7 | 31162604 |
| eClass 8.0 | 36123414 |
| UNSPSC V13.5 | 31162604 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23120201 |
| eClass 5.1 | 23120201 |
| eClass 9.0 | 36123414 |
| eClass 10.0.1 | 36123414 |
| eClass 10.1 | 36123414 |
| UNSPSC V20.0601 | 31162604 |
| eClass 5.1.4 | 23120201 |
| UNSPSC V13.5_S | 3116 |

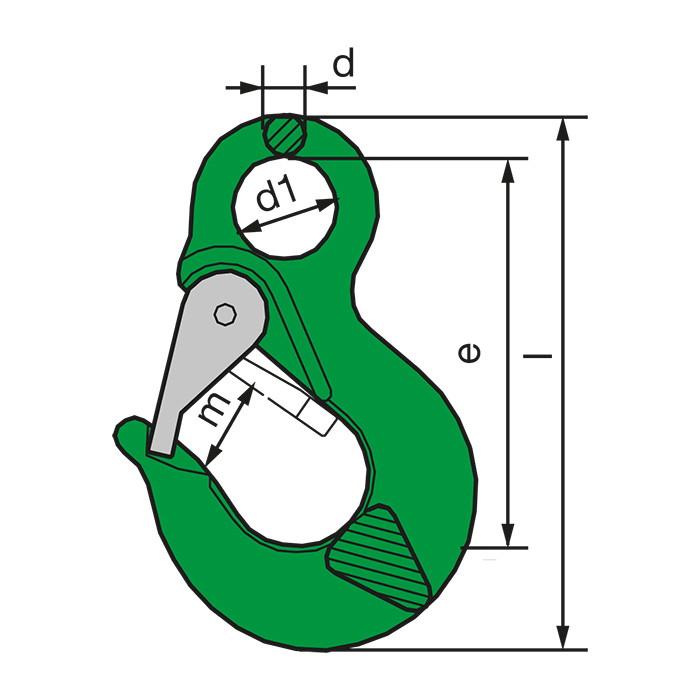

| D | 24 mm |
| d1 | 52 mm |
| E | 213 mm |
| I | 288 mm |
| L | 1.5 mm |
| M | 50 mm |
• Quality class 8, DIN EN 1677-2
• Galvanised safety flap
• Design: green lacquered
