Product description
• Forged load capacity details and manufacturer
• Material: SAE 8620
• Safety latch galvanised
• With deformation indicators
• Finish: painted gold
| Working load limit | 1.250,00 kg |
| Max. operating temperature | 400,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Grade | Grade 8 |
| Nominal strength | 800,00 N/mm2 |
| Hook version | Load hook with safety latch |
| Safety latch version | Forged |
| Hook connection | Eyelet |
| Eyelet diameter | 19,10 mm |
| Hook nominal size | 6 |
| Hook opening | 22,00 mm |
| Colour | gold |
| Surface treatment | Lacquered |
| Standard | DIN EN 1677-2 |
| Product description | Eye Hook |
| Brand | Crosby |
| Type designation | L320AN |
| Manufacturer part number | 1022380 |
| eClass 6.2 | 36123414 |
| eClass 4.0 | 36122204 |
| eClass 4.1 | 36122204 |
| eClass 5 | 36129090 |
| eClass 7.1 | 36123414 |
| UNSPSC V7 | 31162604 |
| eClass 8.0 | 36123414 |
| UNSPSC V13.5 | 31162604 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23120201 |
| eClass 5.1 | 23120201 |
| eClass 9.0 | 36123414 |
| eClass 10.0.1 | 36123414 |
| eClass 10.1 | 36123414 |
| UNSPSC V20.0601 | 31162604 |
| eClass 5.1.4 | 23120201 |
| UNSPSC V13.5_S | 3116 |

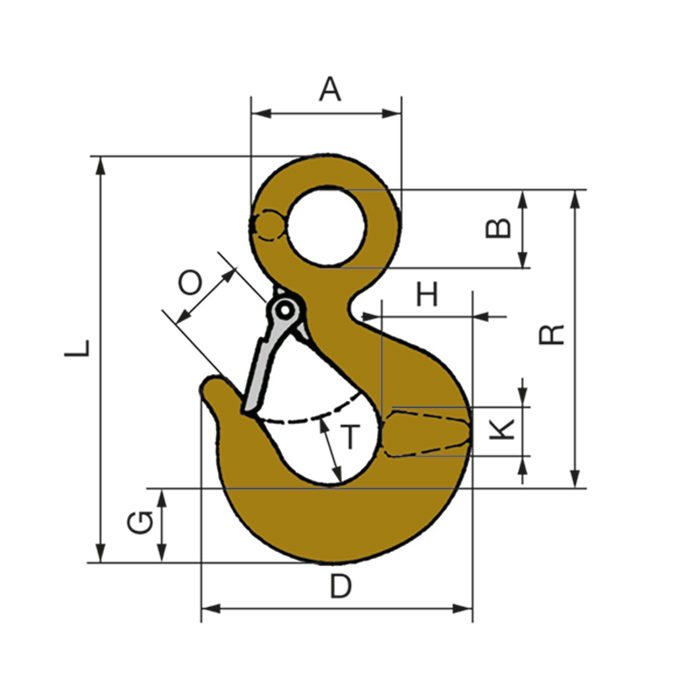

| A | 37.5 mm |
| B | 19.1 mm |
| D | 73 mm |
| G | 19 mm |
| H | 20.5 mm |
| K | 16 mm |
| L | 110 mm |
| O | 22 mm |
| R | 82 mm |
| T | 20.5 mm |
• Forged load capacity details and manufacturer
• Material: SAE 8620
• Safety latch galvanised
• With deformation indicators
• Finish: painted gold
