Product description
• Quality class 8, DIN EN 1677-2
• Locks automatically under load
• Design: varnished red
| Working load limit | 5.300,00 kg |
| Max. operating temperature | 400,00 °C |
| Min. operating temperature | -40,00 °C |
| Explosion protection | No |
| Material | Steel |
| Grade | Grade 8 |
| Nominal strength | 800,00 N/mm2 |
| Hook version | Self-locking hook |
| Hook connection | Eyelet |
| Eyelet diameter | 40,00 mm |
| Hook nominal size | 13,00 |
| Hook opening | 51,00 mm |
| Colour | red |
| RAL colour no. | RAL 3000 Flame Red |
| Surface treatment | Lacquered |
| Standard | DIN EN 1677-3 |
| Product description | Automatic Eye Hook |
| Brand | Cartec80 |
| Type designation | CRO |
| Manufacturer part number | CRO13 |
| eClass 6.2 | 36123414 |
| eClass 4.0 | 36122204 |
| eClass 4.1 | 36122204 |
| eClass 5 | 36129090 |
| eClass 7.1 | 36123414 |
| UNSPSC V7 | 31162604 |
| eClass 8.0 | 36123414 |
| UNSPSC V13.5 | 31162604 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23120201 |
| eClass 5.1 | 23120201 |
| eClass 9.0 | 36123414 |
| eClass 10.0.1 | 36123414 |
| GTIN | 8013429813047 |
| eClass 10.1 | 36123414 |
| UNSPSC V20.0601 | 31162604 |
| eClass 5.1.4 | 23120201 |
| UNSPSC V13.5_S | 3116 |

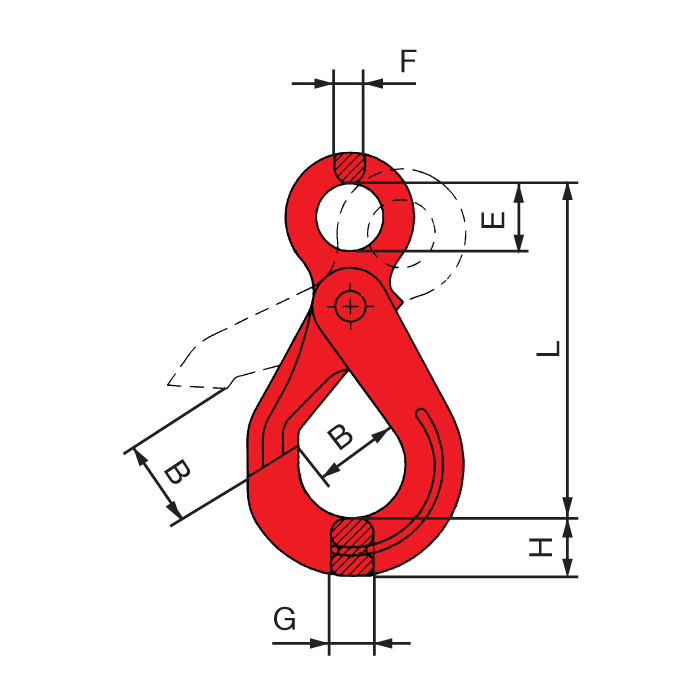

| B | 51 mm |
| E | 40 mm |
| F | 20 mm |
| G | 35 mm |
| H | 40 mm |
| L | 205 mm |
• Quality class 8, DIN EN 1677-2
• Locks automatically under load
• Design: varnished red
