• Sling chain in accordance to DIN EN 818-2 • Material: patented steel, specially tempered, high durability • Greater wear resistance • 30% higher surface hardness than grade 8 therefore longer service lives • Surface powder-coated in traffic purple PAS = Publicly Available Specification According t...
show more
• Sling chain in accordance to DIN EN 818-2
• Material: patented steel, specially tempered, high durability
• Greater wear resistance
• 30% higher surface hardness than grade 8 therefore longer service lives
• Surface powder-coated in traffic purple
PAS = Publicly Available Specification
According to the BG recommendation, chains and components from different manufacturers should not be combined
| Working load limit | 3.000,00 kg |
| Max. operating temperature | 300,00 °C |
| Min. operating temperature | -60,00 °C |
| Explosion protection | No |
| Material | Steel |
| Chain link diametre | 8 mm |
| Pitch | 24,00 mm |
| Grade | Grade 12 |
| Nominal strength | 1.200,00 N/mm2 |
| RAL colour number | RAL 4006 Traffic Purple |
| Surface treatment | Powder-coated |
| Standard | DIN EN 818-2 |
| Product description | Round steel chain |
| Brand | ICE |
| Type designation | IMK |
| Manufacturer part number | 7996119 |

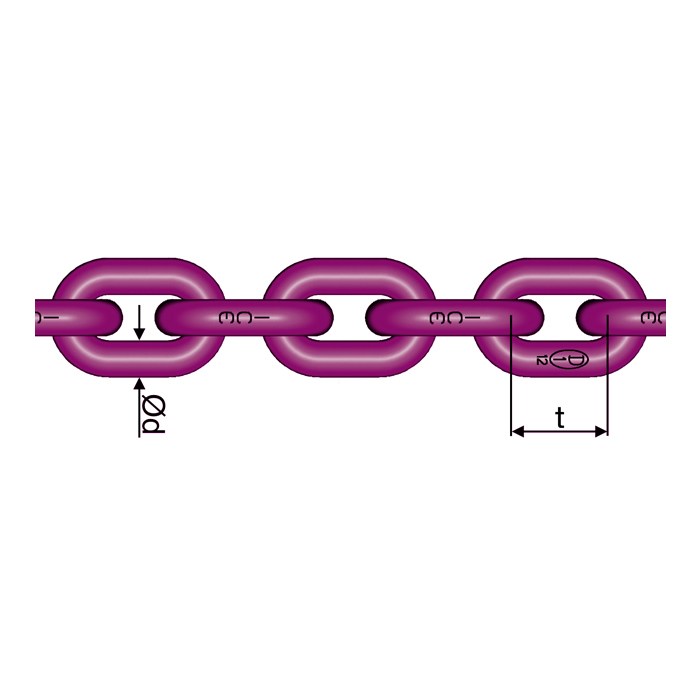

| t | 24 mm |
| Ød | 8 mm |
| eClass 6.2 | 36123408 |
| eClass 4.0 | 23170401 |
| eClass 4.1 | 23170401 |
| eClass 5 | 23170403 |
| eClass 7.1 | 36123408 |
| UNSPSC V7 | 31151605 |
| eClass 8.0 | 36123408 |
| UNSPSC V13.5 | 31151605 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 23170403 |
| eClass 5.1 | 23170403 |
| eClass 9.0 | 36123408 |
| eClass 10.0.1 | 36123408 |
| GTIN | 4008244265540 |
| eClass 10.1 | 36123408 |
| UNSPSC V20.0601 | 31151605 |
| eClass 5.1.4 | 23170403 |
| UNSPSC V13.5_S | 3115 |
