Chain Sling ICE Grade 12 Ø4mm 4PC 1,5m

£571.24
Final price is shown in the shopping cart.
Materialnumber
25101000039149

Free Return
no
Free Shipping
No, see Checkout
Shipping
Expected to arrive in 6-30 working days
Payment options:
E-MailWhatsapp
Max. operating temperature300,00 °C
Min. operating temperature-60,00 °C
Explosion protectionNo
MaterialSteel
Chain link diametre4 mm
Pitch12,00 mm
GradeGrade 12
Effective Working Length (ewl)1,50 m
Number of Legs4
WLL under angle 0° - 45°1.700,00 kg
WLL under angle 45°- 60°1.180,00 kg
Upper connectorSuspension set
Lower connectorClevis hook
Shortener typeintegrated in the suspension h
Length adjustmentNo
Nominal strength1.200,00 N/mm2
StandardPAS 1061,DIN EN 818-4
Identification label availableNo
Product descriptionChain Sling
BrandICE
Type Upper FittingICE-IML-4
Type Lower FittingISH-4
Manufacturer part number25101000039149
eClass 6.236123408
eClass 4.023170401
eClass 4.123170401
eClass 523170403
eClass 7.136123408
UNSPSC V731151605
eClass 8.036123408
UNSPSC V13.531151605
eClass 5.1.123170403
eClass 5.123170403
eClass 9.036123408
eClass 10.0.136123408
eClass 10.136123408
UNSPSC V20.060131151605
eClass 5.1.423170403
UNSPSC V13.5_S3115

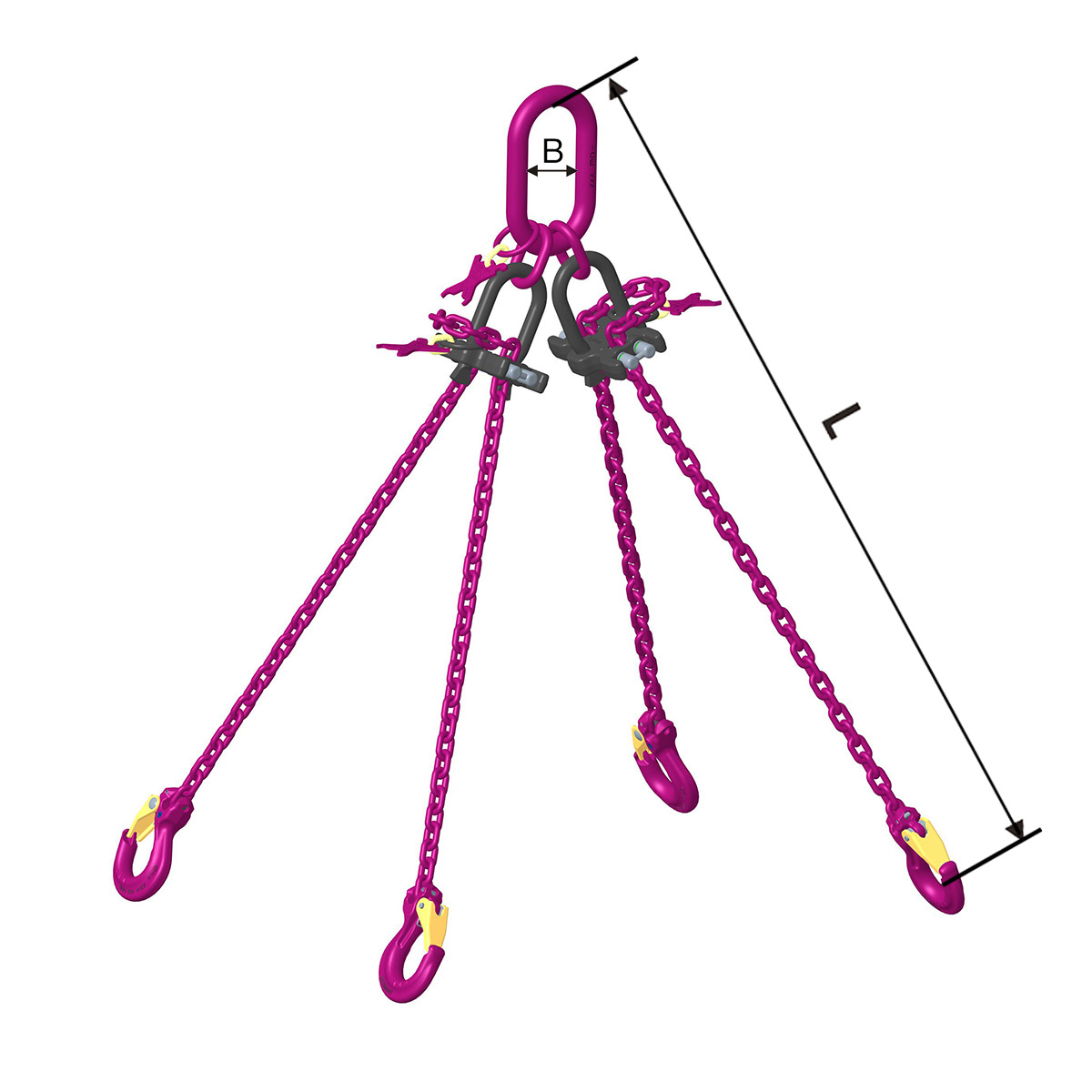

B35 mm
L1500 mm
Anschlagkette GK 12 Mini 4ST verkürzb.

Product description

The ICE 4-leg chain sling mini with shortener combines high-strength performance with versatile adjustability, making it perfect for demanding industrial lifting tasks in confined spaces. Crafted from patented ICE material, it offers up to 60% higher breaking strength compared to standard grade 8 chains, while being 30% lighter for easier handling. The integrated shortener allows quick adjustments, offering enhanced flexibility for various lifting needs. Built to withstand extreme temperatures ranging from -60°C to +300°C, this sling excels in harsh environments. With superior abrasion resistance, improved toughness, and a longer service life, the ICE 4-leg chain sling mini with shortener is the ideal choice for precise, adjustable, and durable lifting solutions.
