Universal swivel Fork/lug 20.000kg VWA

£1,046.45
Final price is shown in the shopping cart.
Materialnumber
20202000015105

Free Return
no
Free Shipping
No, see Checkout
Shipping
Expected to arrive in 6-30 working days
Payment options:
E-MailWhatsapp
Working load limit20.000,00 kg
MaterialSteel
ShapeFork/lug
StandardDIN EN 1677-1
Identification label availableNo
Product descriptionUniversal Swivel
BrandVIP
Type designationVWA
eClass 6.223179106
eClass 4.023170704
eClass 4.123170704
eClass 536129090
eClass 7.123179106
UNSPSC V724101600
eClass 8.023179106
UNSPSC V13.524101600
Defined eStandard1
eClass 5.1.123179106
eClass 5.123179106
eClass 9.023179106
eClass 10.0.123179106
GTIN4008244230739
eClass 10.123179106
UNSPSC V20.060124101600
eClass 5.1.423179106
UNSPSC V13.5_S241016

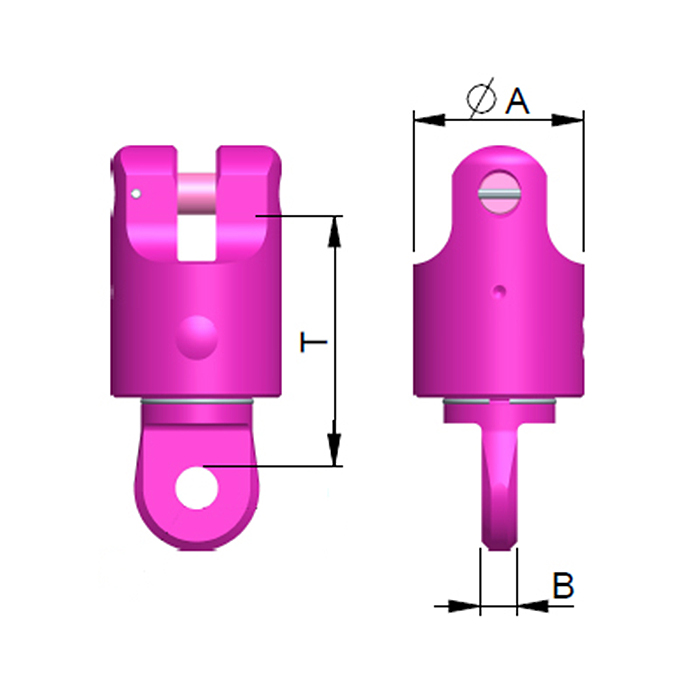

A102 mm
B23 mm
T147 mm
VIP-Wirbeladapter VWA

Product description

• Ball bearing, thus also rotatable under load
• Can be combined in a variety of ways, can be mounted on the fork head without confusion with all VIP components thanks to adapter strip
• Insensitive to dirt due to sealing
• Completely pre-assembled with connecting bolt and clamping sleeve
• The BGR 500/DGUV rule 100-500 stipulates that Slings must be unscrewed before use. This is done automatically with the VWA.

Attention: Install the VWA in such a way that it cannot bend onto the adapter strip during use. Not suitable for continuous operation under full load. Do not apply bending load.
