| Working load limit | 1.500,00 kg |
| Max. operating temperature | 80,00 °C |
| Min. operating temperature | -20,00 °C |
| Explosion protection | No |
| Corrosion resistance | No |
| Material | Steel |
| Surface | Varnished |
| Max. beam width | 190,00 mm |
| Min. beam width | 64,00 mm |
| Trolley type | Push trolley |
| Product description | Monorail Trolley |
| Manufacturer | Nordgreif |
| Brand | Nordgreif |
| Short text product descr. | Monorail trolley |
| Type designation | TF |
| eClass 6.2 | 36123505 |
| eClass 5 | 36129090 |
| eClass 7.1 | 36123505 |
| UNSPSC V7 | 24101600 |
| eClass 8.0 | 36123505 |
| UNSPSC V13.5 | 24101600 |
| Defined eStandard | 1 |
| eClass 5.1.1 | 36129090 |
| eClass 5.1 | 36129090 |
| eClass 9.0 | 36123505 |
| eClass 10.0.1 | 36123505 |
| eClass 10.1 | 36123505 |
| UNSPSC V20.0601 | 24101627 |
| eClass 5.1.4 | 36129090 |
| UNSPSC V13.5_S | 241016 |

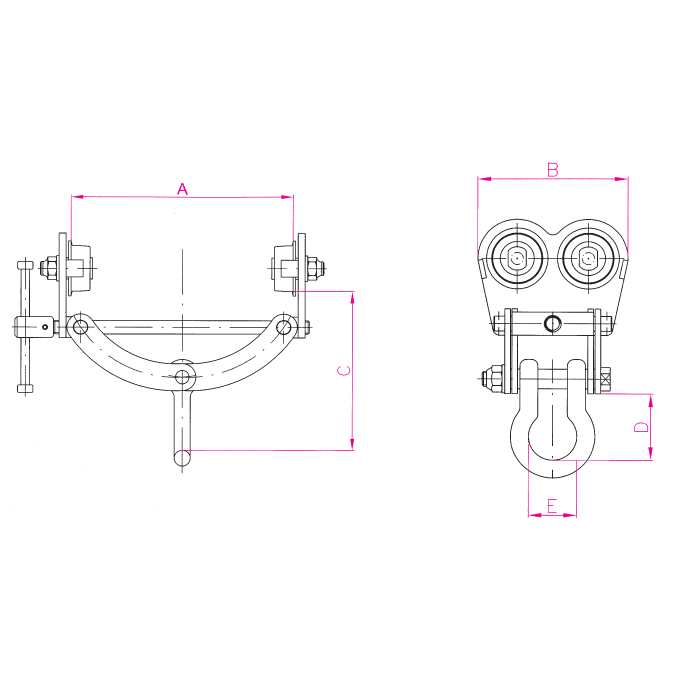

| A | 64 mm |
| B | 160 mm |
| C | 240 mm |
| D | 60 mm |
| E | 50 mm |
• Beam clamps with a trolley can be quickly and easily attached to a beam without assembly tools or aids
• The castors are pressed onto the beam by the clamping spindle
• Ideal for assembly and repair work – easy to attach and remove
• Castors with precision ball bearings
Caution: Not suitable for lifting!
