| WLL | 5.000,00 kg |
| Max. arbejds temperatur | 40,00 °C |
| Min. arbejds temperatur | -20,00 °C |
| Eksplosionsbeskyttelse | Nej |
| Driftsspænding | 400,00 V |
| Motor effekt | 5,50 KW |
| IP Faktor | IP55 |
| Ophæng | Ophængsøje |
| Antal kæde fald | 2 |
| Effektiv arbejdslængde (ewl) | 3 m |
| WLL vinkel 0° - 45° | 5.000,00 kg |
| Type of Drive | Elektrisk |
| Lastkæde diameter | 16,00 mm |
| Produkt beskrivelse | Travers enhed |
| Type designation | 67/19 AT |
| eClass 6.2 | 36123490 |
| eClass 7.1 | 36123490 |
| eClass 8.0 | 36123490 |
| UNSPSC V13.5 | 24101600 |
| eClass 5.1.1 | 36123490 |
| eClass 5.1 | 36123490 |
| eClass 9.0 | 36123490 |
| eClass 10.0.1 | 36123490 |
| eClass 10.1 | 36123490 |
| UNSPSC V20.0601 | 24101600 |
| eClass 5.1.4 | 36123490 |
| UNSPSC V13.5_S | 241016 |

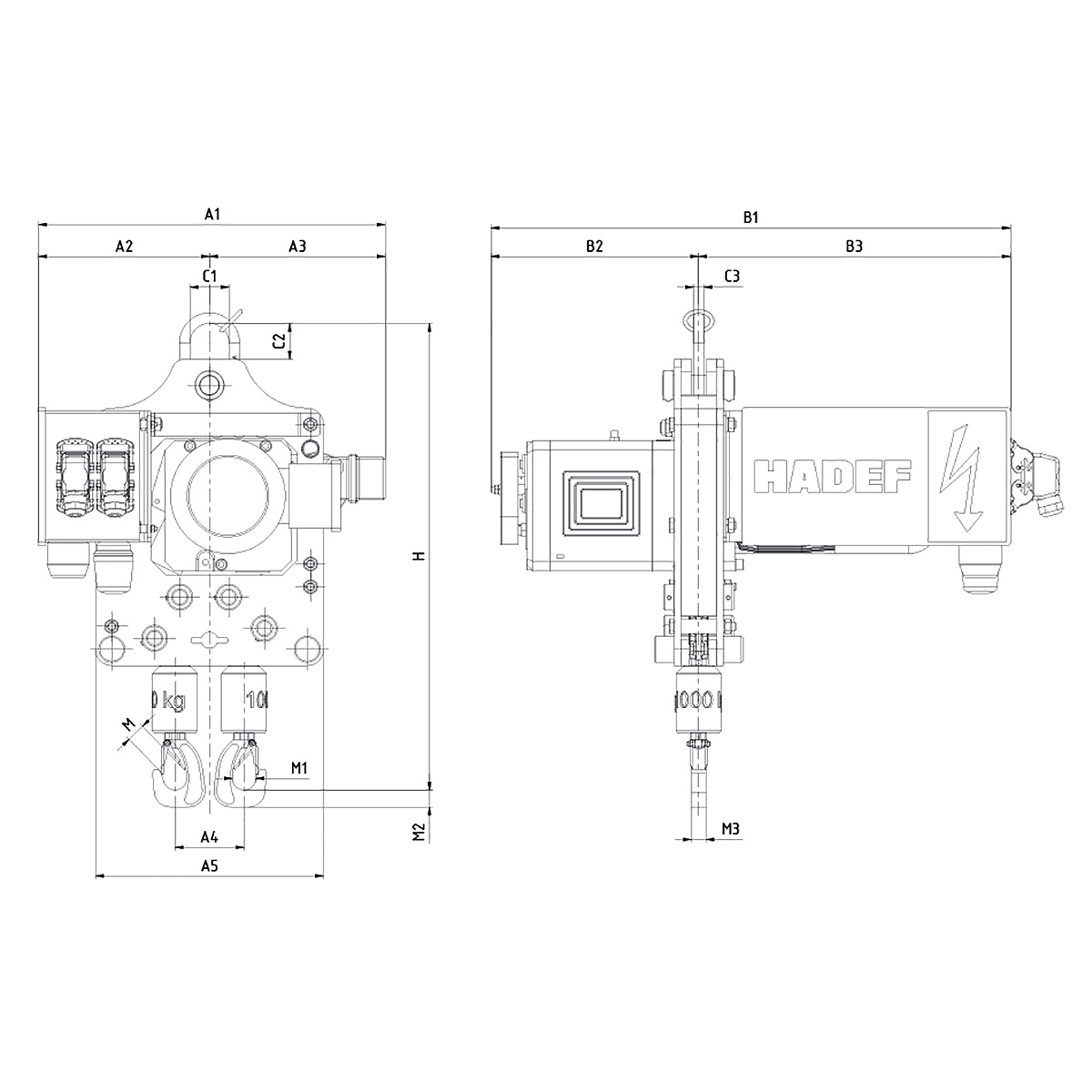

| A1 | 650 mm |
| A2 | 338 mm |
| A3 | 312 mm |
| A4 | 146 mm |
| A5 | 460 mm |
| B1 | 776 mm |
| B2 | 287 mm |
| B3 | 489 mm |
| C1 | 90 mm |
| C2 | 95 mm |
| C3 | 22 mm |
| H | 1027 mm |
| M | 32 mm |
| M1 | 50 mm |
| M2 | 40 mm |
| M3 | 38 mm |
• Plug-in connection for power supply and pendant control
• Contactor control 48 V
• Phase monitoring relay
• Thermo sensor in the hoist motor
• Operting hours counter
• Overload protection by slipping clutch and current cut-off (AK 4 – 8)
• Overload protection by current cut-off (AT 9 – 10)
• Gear limit switch for end position actuation
• IP 55 enclosure, IP 66 as option (protection against particles and water)
