Produktbeskrivelse
- Clamping jaw
- galvanized
- bracket + nut
- yellow galvanized
- Please note: Wire rope clamps DIN EN 13411-5 are only approved for the
static loads and one-time lifting operations.
- Available up to nominal size 40
| Materiale | Stål |
| min. Reb diameter | 26,00 mm |
| max. Reb diameter | 26,00 mm |
| Nominel størrelse | 26,0 |
| Standard | EN 13411-5 |
| Identifikat.label til rådighed | Nej |
| Produkt beskrivelse | tov klemme |
| eClass 6.2 | 23130103 |
| eClass 4.0 | 23130103 |
| eClass 4.1 | 23130103 |
| eClass 5 | 23130103 |
| eClass 7.1 | 23130103 |
| UNSPSC v7 | 31162904 |
| eClass 8.0 | 23130103 |
| UNSPSC V13.5 | 31162904 |
| eClass 5.1.1 | 23130103 |
| eClass 5.1 | 23130103 |
| eClass 9.0 | 23130103 |
| eClass 10.0.1 | 23130103 |
| GTIN | 4251063405523 |
| eClass 10.1 | 23130103 |
| UNSPSC V20.0601 | 31162904 |
| eClass 5.1.4 | 23130103 |
| UNSPSC V13.5_S | 3116 |

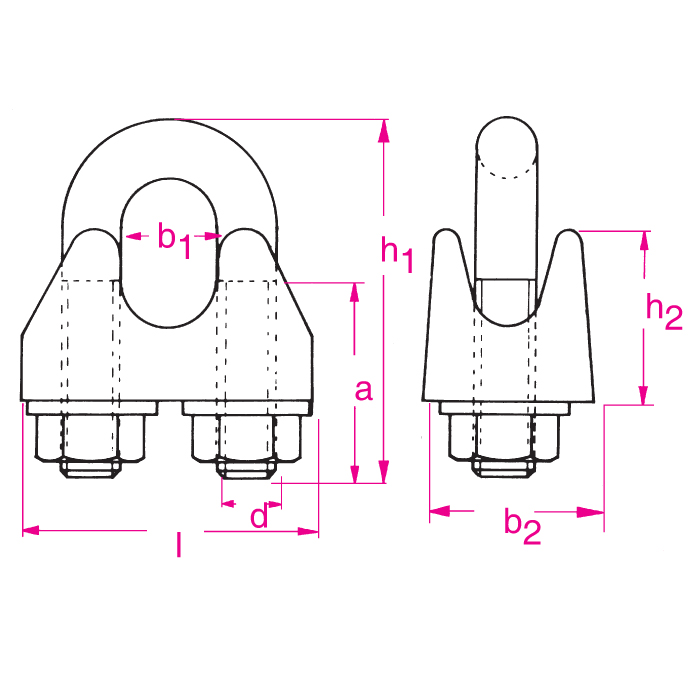

| A | 50 mm |
| B1 | 26 mm |
| B2 | 38 mm |
| D | 20 mm |
| H1 | 118 mm |
| H2 | 51 mm |
| L | 84 mm |
- Clamping jaw
- galvanized
- bracket + nut
- yellow galvanized
- Please note: Wire rope clamps DIN EN 13411-5 are only approved for the
static loads and one-time lifting operations.
- Available up to nominal size 40
