| WLL | 3.000,00 kg |
| Materiale | Stål |
| min. Reb diameter | 13,00 mm |
| max. Reb diameter | 13,00 mm |
| Form | Gaffel/Krog |
| Identifikat.label til rådighed | Nej |
| Produkt beskrivelse | Svirvel |
| Mærke | Crosby |
| Type designation | S-1 |
| eClass 6.2 | 23179106 |
| eClass 4.0 | 23170706 |
| eClass 4.1 | 23170706 |
| eClass 5 | 23179106 |
| eClass 7.1 | 23179106 |
| UNSPSC v7 | 24101600 |
| eClass 8.0 | 23179106 |
| UNSPSC V13.5 | 24101600 |
| Defineret eStandard | 1 |
| eClass 5.1.1 | 23179106 |
| eClass 5.1 | 23179106 |
| eClass 9.0 | 23179106 |
| eClass 10.0.1 | 23179106 |
| eClass 10.1 | 23179106 |
| UNSPSC V20.0601 | 24101600 |
| eClass 5.1.4 | 23179106 |
| UNSPSC V13.5_S | 241016 |

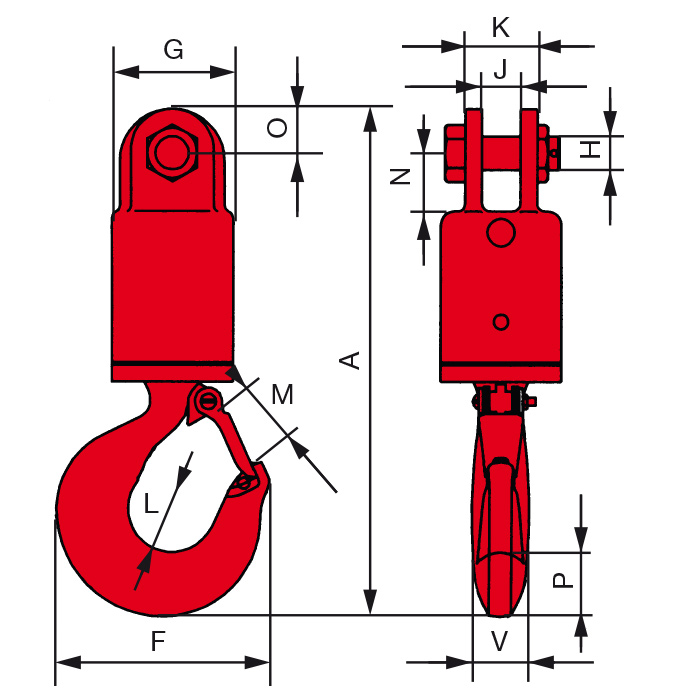

| A | 291 mm |
| F | 123 mm |
| G | 70 mm |
| H | 19.1 mm |
| J | 22.4 mm |
| K | 41.1 mm |
| L | 38.9 mm |
| M | 35.8 mm |
| N | 33.3 mm |
| O | 25.4 mm |
| P | 36.6 mm |
| V | 28.4 mm |
- Designed to swivel with load
- Swivels are individually tested (with certificate)
- The hook is supplied with mounted safety flap
- The fork is provided with bolts, nuts and cotter pins
- With forced lubrication
- Do not use with wrecking balls
