Produktbeskrivelse
- Solid thimble according to DIN 3091 with raw dimension hole
- Surface: Standard raw Finish galvanized galvanized or
hot-dip galvanized on request
| Materiale | Støbejern |
| Overflade | rå |
| Nominel størrelse | 24,0 |
| Sporbredde | 26,00 mm |
| yder bredde | 120,00 mm |
| Standard | EN 13411-9 |
| Identifikat.label til rådighed | Nej |
| Produkt beskrivelse | Massiv kovs |
| Kovs huldiameter | 41,00 mm |
| eClass 6.2 | 23130104 |
| eClass 4.0 | 23170706 |
| eClass 4.1 | 23170706 |
| eClass 5 | 23179106 |
| eClass 7.1 | 23130104 |
| UNSPSC v7 | 31162805 |
| eClass 8.0 | 23130104 |
| UNSPSC V13.5 | 31162805 |
| eClass 5.1.1 | 23130104 |
| eClass 5.1 | 23130104 |
| eClass 9.0 | 23130104 |
| eClass 10.0.1 | 23130104 |
| eClass 10.1 | 23130104 |
| UNSPSC V20.0601 | 31162805 |
| eClass 5.1.4 | 23130104 |
| UNSPSC V13.5_S | 3116 |

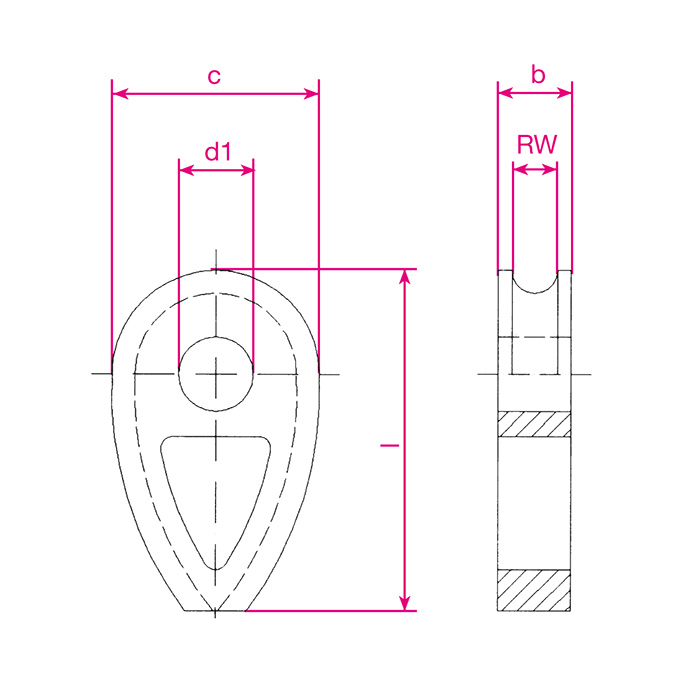

| B | 36 mm |
| C | 120 mm |
| D1 | 41 mm |
| RW | 26 mm |
| L | 193 mm |
- Solid thimble according to DIN 3091 with raw dimension hole
- Surface: Standard raw Finish galvanized galvanized or
hot-dip galvanized on request
