El kædetalje STAR SPEEDLINE

32.216,00 kr
Den endelige pris vises i indkøbskurven.
Materialenummer
15141000037992

Gratis returnering
Nej
Gratis forsendelse
Nej, se udtjekning
Forsendelse
Forventes at ankomme om 6-30 arbejdsdage
Betalingsmetoder:
E-mailWhatsapp
WLL2.000,00 kg
Max. arbejds temperatur40,00 °C
Min. arbejds temperatur-20,00 °C
Løftehøjde3 m
Driftsspænding400,00 V
Arbejdscyklus60,00,25,00 %
HejsehastighedstypeTotrin
1. stadie hejsehastighed0,75 m/min
2. stadie hejsehastighed3 m/min
Mekanismegruppe2m,M5
IP FaktorIP55
OphængElektrisk løbekat
max. bjælke størrelse/vidde135,00 mm
Min. Bjælke bredde66,00 mm
Antal kæde fald2
Kædekasse inkluderetJa
Kontrol line længde1,50 m
Kædeled diameter7,20 mm
Pitch21,00 mm
Lastkæde typeRund stålkæde
Frekvens50,00 Hz
StandardDIN EN 60204-32,DIN EN ISO 12100,DIN EN 14492-2,DIN EN 818-7
Produkt beskrivelseEl kædetalje
ProducentLIFTKET Hoffmann GmbH
Kort produktbeskrivelseElektrisk kædetalje
Type designationSTAR SPEEDLINE
Kontrol enhedKonrol kabel med kontrol enhed
producent del nummer071/55-2 SL EFW 3M
Nettovægt82,00 kg
eClass 6.236120209
eClass 536120201
eClass 7.136120209
eClass 8.036120209
eClass 5.1.136120201
eClass 5.136120201
eClass 9.036120209
eClass 10.0.136120209
eClass 10.136120209
UNSPSC V20.060124101602
eClass 5.1.436120201
UNSPSC V13.5_S241016

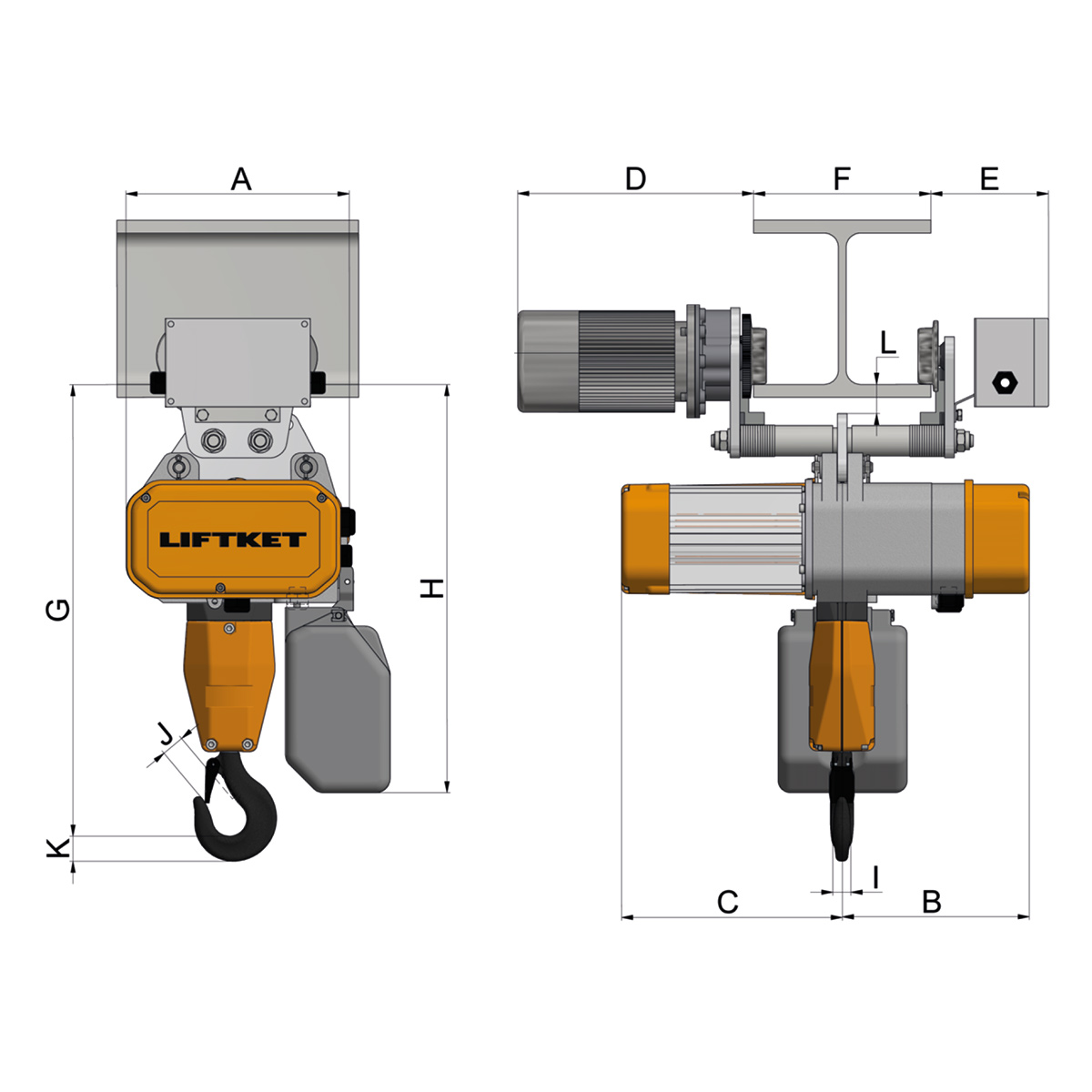

A277 mm
B232 mm
C274 mm
D292 mm
E190 mm
F66 mm
G558 mm
H564 mm
I24 mm
J28 mm
K31 mm
L34 mm
N112 mm
EK-Kettenzug Elektrofahrwerk

Produktbeskrivelse

Customized electric chain hoists with extremely short delivery time.

The Speedline model series can be specified with suspension (eye, hook suspension), beam width and manual or electric trolley. Lifting heights of up to 20 m are possible with the Speedline, covering most industrial applications. The 11 different models cover lifting capacities from 125 kg to 5000 kg. Depending on the load, the chain hoists offer different rated speeds up to a maximum of 10 m/min. They each have two speed levels. The series, which is optimized for fast

production is tested, safe and very robust and durable. The mechanics have already been proven hundreds of thousands of times in the STAR LIFTKET series.

The outstanding features of the Speedline:

- Extremely short delivery time

- Lifting capacities from 125 - 5000 kg

- Up to 20 m lifting height

- Quality "Made in Germany"

- Customized electric chain hoists with single hole suspension,

manual trolley, electric trolley or hook suspension
