Product description
The next generation of lifting clamps. The new lifting clamp ‘made in
Germany’ represents ultimate quality.

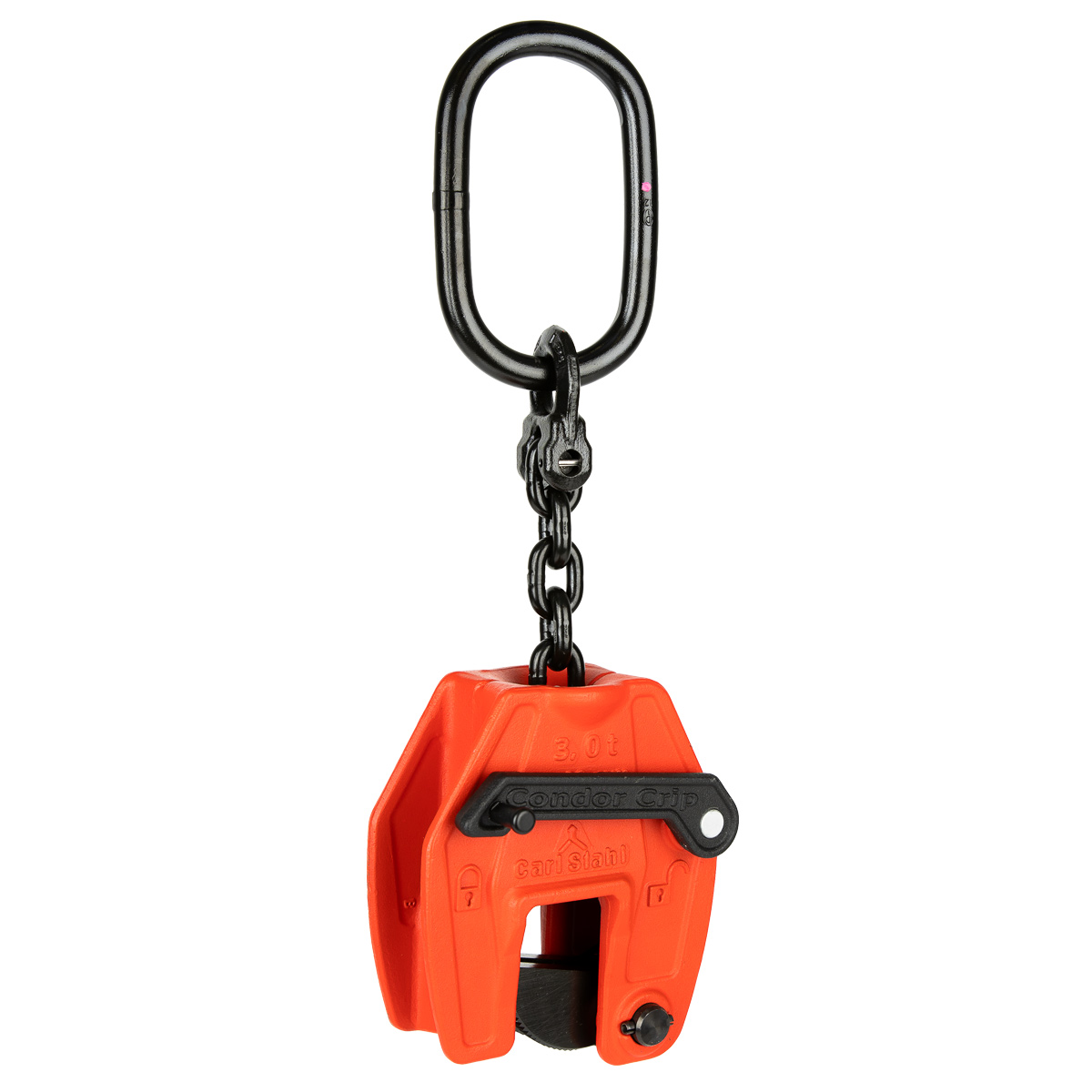

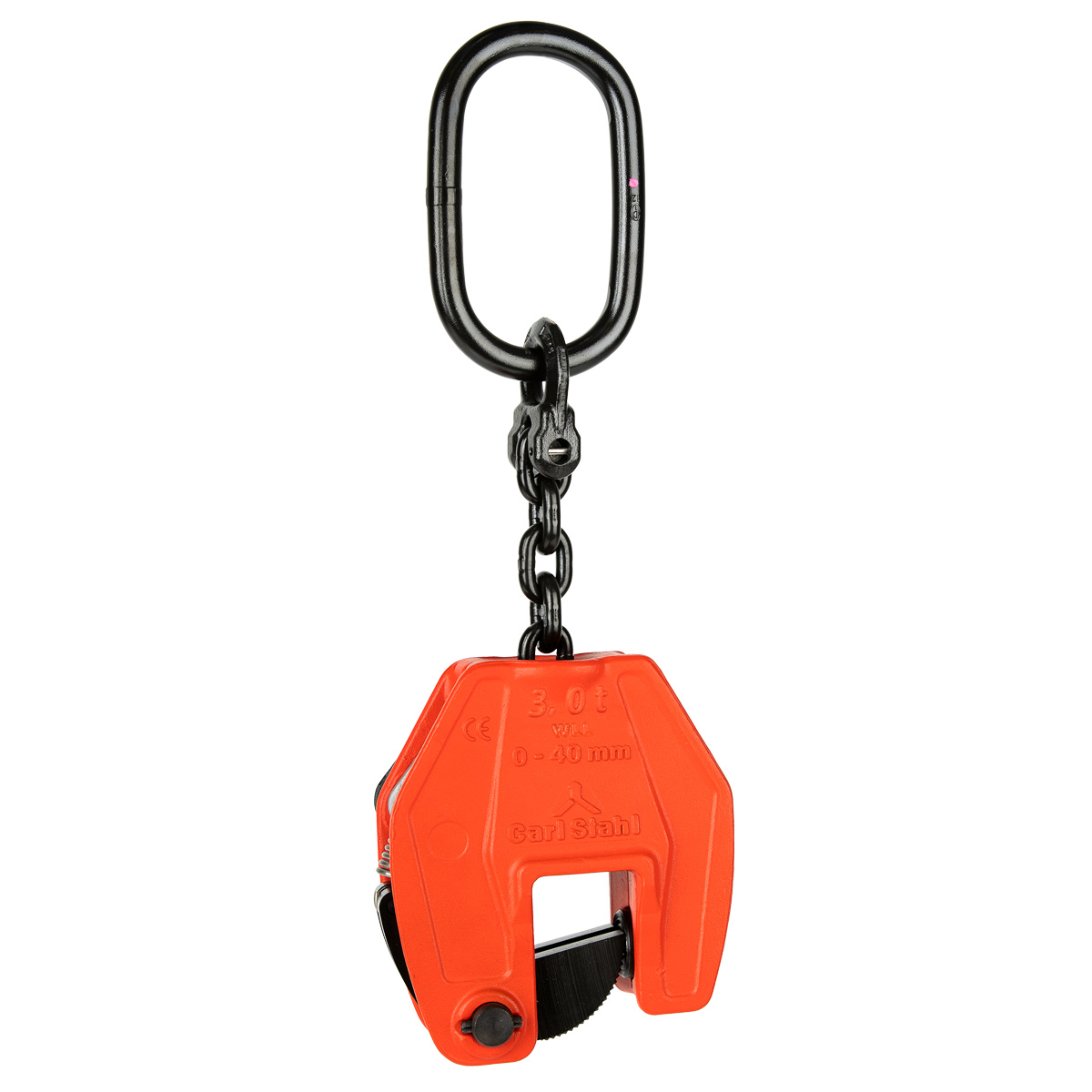

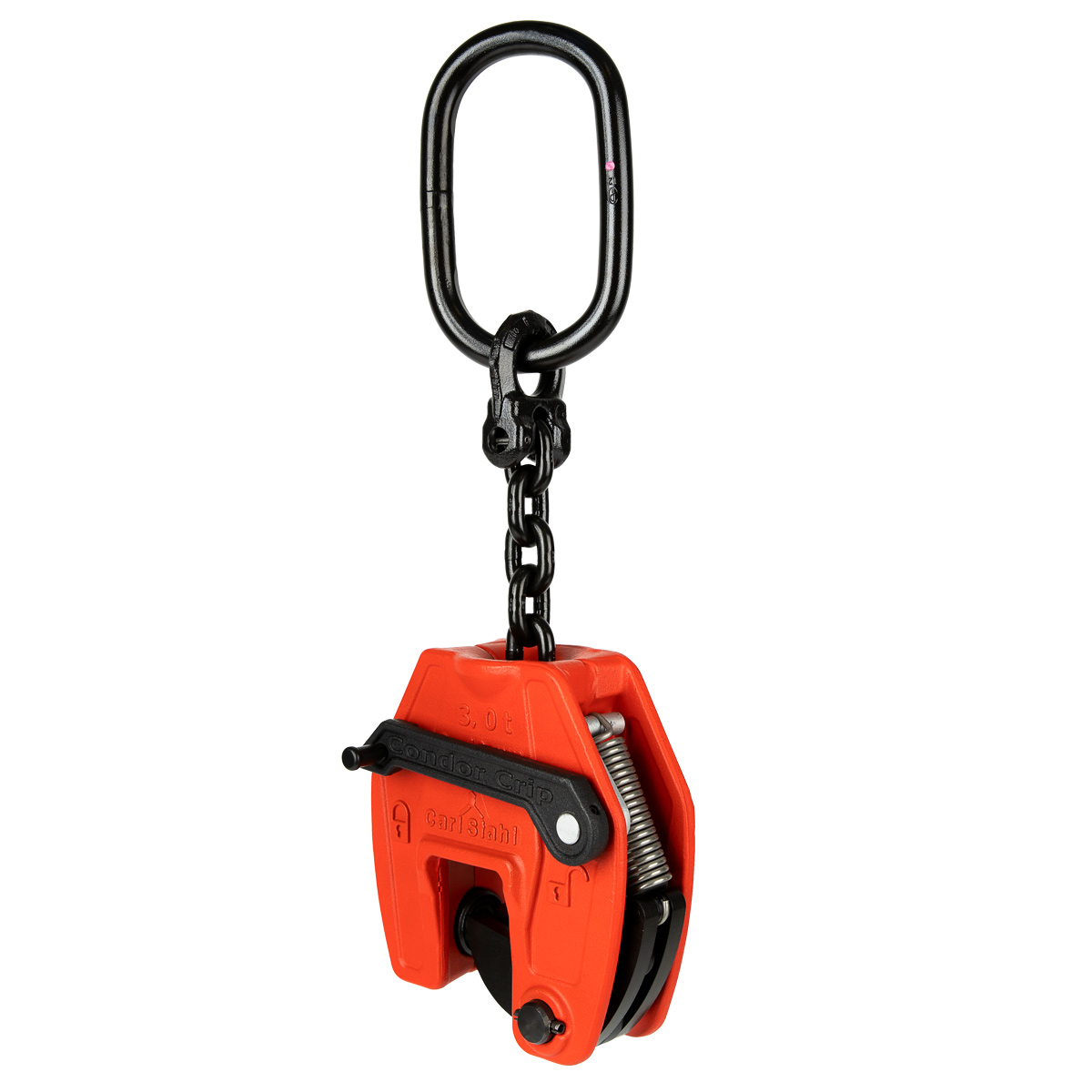

The CondorGrip CGUK universal clamp is an innovative development
for horizontal and vertical transportation. The lifting clamp impresses
with its unique, patent-pending design, which enables optimum safety
in all pull directions.

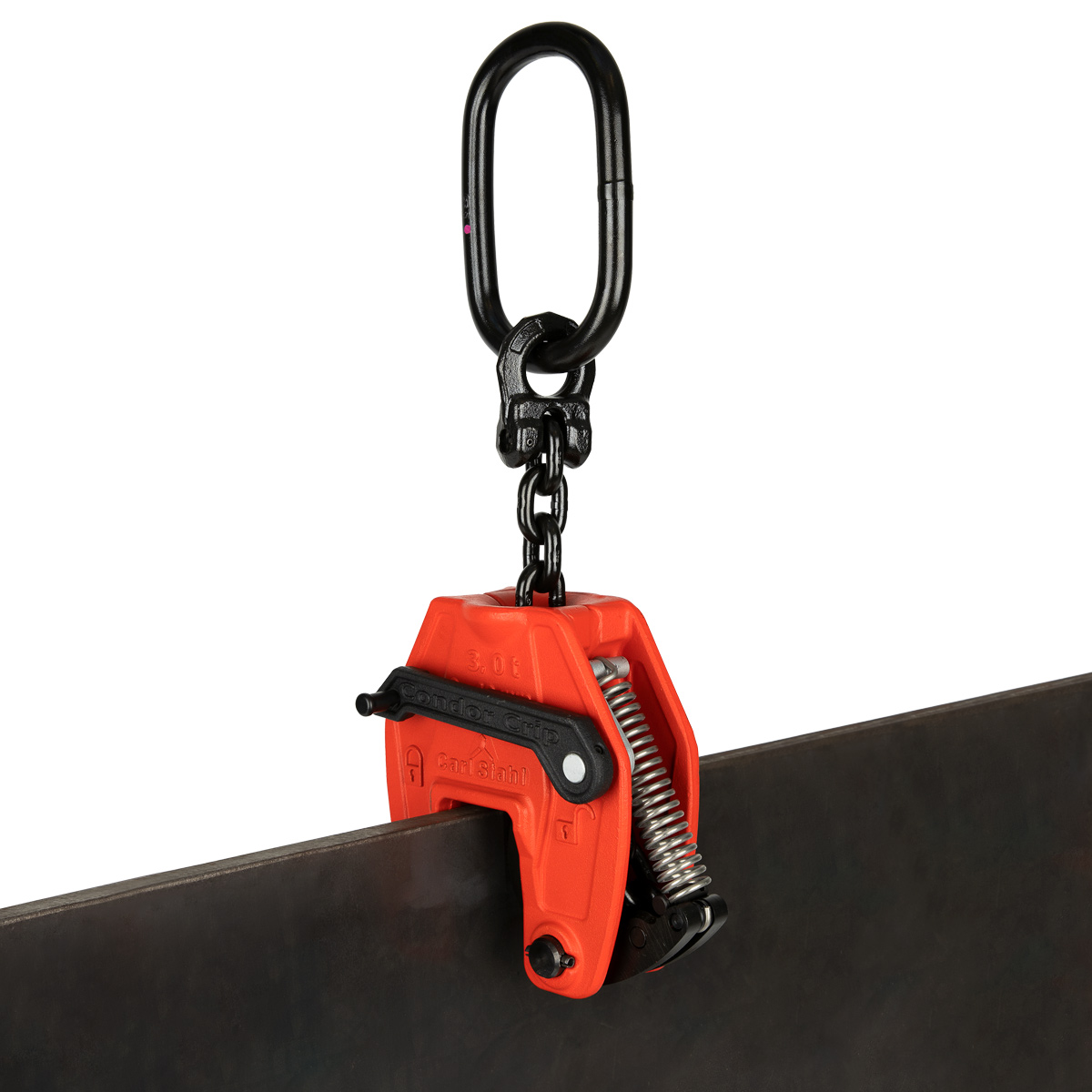

• For lifting, turning (180°) and transport of steel sheets, steel constructions and standard profiles
• Rigid, FEM-optimised forged housing with a low dead weight
• Load capacity and grab range forged into the housing
• Traffic red (RAL 3020), powder-coated housing
• Fewer wear parts thanks to the new and innovative chain guide
• Permissible 360˚ pull at a 90˚ angle, therefore suitable for more universal use than comparable models
• Two grab jaws enable optimum connection to the load
• Ergonomically designed safety lever can also be operated when wearing
gloves
• The suspension eye can be directly hung on the crane hook (suitable for use up to crane hook size 2.5)
• Version CGUK 1.0 and CGUK 2.0 / standard version
• Version CGUK 1.8 and CGUK 3.0 / high-strength version
• Permissible minimum load 10% of the load capacity/WLL
• For transport goods with surface hardness up to 32 HRC
(1,030/mm²)
Option:
• Oval ring for larger crane hooks
